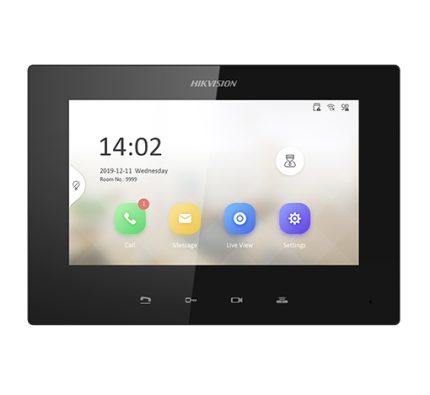

Series IP-Based Indoor Station ยี่ห้อ HIKVISION รุ่น DS-KH6220-LE1/White

• Standard PoE
• 7-inch colorful non-touch screen with resolution 1024 × 600
• Views live video of door stations and linked cameras

Specification

System Parameters

• Operating System : Embedded RTOS operation system
• ROM : 16 MB
• RAM : 64 MB
• CPU : Embedded processor

Display Parameters

• Screen Size : 7-inch
• Operation Method : Physical botton
• Type : TFT LCD
• Resolution : 1024 × 600

Video Parameters

• Lens : /
• Resolution : Not supported.
• FOV : /
• WDR : /
• Video Compression Standard : /
• Focal Length : /

Audio Parameters

• Audio Compression Standard : G.711 U
• Audio Input : Built-in omnidirectional microphone
• Audio Output : Built-in loudspeaker
• Audio Compression Bitrate : 64 Kbps
• Audio Quality : Noise suppression and echo cancellation
• Volume Adjustment : Adjustable

Capacity

• Event Capacity : 200
• Notice Capacity : 16
• Linked Indoor Station Capacity : 5
• Linked Indoor Extensions Capacity : 8

Network Parameters

• Communication Protocol : TCP/IP, RTSP
• Wired Network : Support
• Wi-Fi Standard : /
• Bluetooth Version : /
• 3G/4G Standard : /
• Zigbee : /

Device Interfaces

• Alarm Input : 8
• Network Interface1  : RJ-45 10/100 Mbps self-adaptive
• TAMPER : /
• RS-485 : /
• USB : /
• TF Card : /
• Alarm Output : /
• Power Interface : 1
