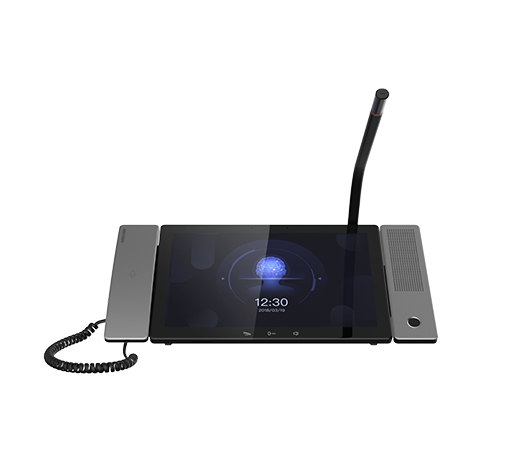

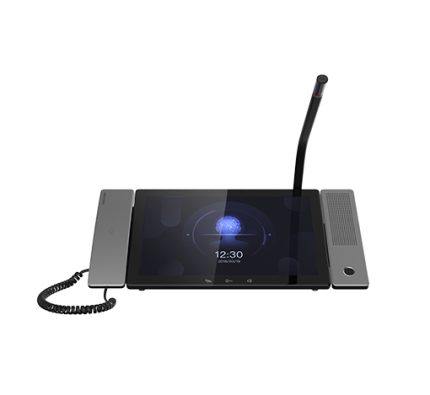

Touch Android  IP Main Station ยี่ห้อ HIKVISION รุ่น DS-KM9503

• 10.1-inch IPS touch screen with resolution: 1280 × 800
• Up to 128 network cameras can be added to the device
• Built-in SIP private server, up to 10000 video intercom devices can be added
• Supports more than 2 speakers and microphones: Connects to external earphone (3.5mm), external goose neck microphone
• Displays operation pages via HDMI
• Power supply: standard PoE & 12 VDC
• Video intercom and access control functions

Specification

System Parameters

• Operating System : Android 7.1
• ROM : 8 GB
• RAM : 2 GB
• CPU : Embedded processor

Display Parameters

• Screen Size : 10.1-inch
• Operation Method : Capacitive touch screen
• Type : IPS
• Resolution : 1280 × 800

Video Parameters

• Resolution : 2 MP
• FOV : Horizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°
• WDR : /
• Supplement Light : /
• Video Compression Standard : H.264
