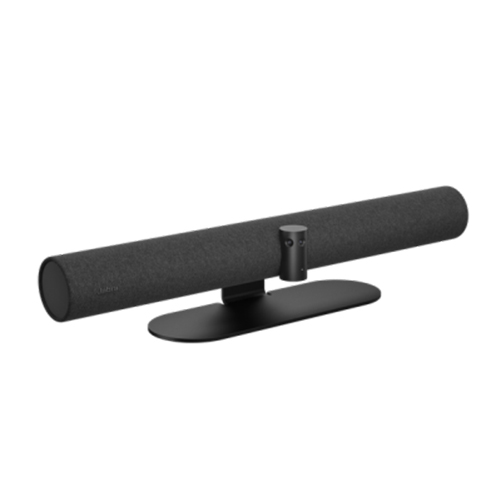

วิดีโอคอนเฟอร์เรนซ์บาร์ สำหรับประชุมขนาดเล็ก ยี่ห้อ JABRA รุ่น PanaCast 50

Engineered to be the first new-normal-ready intelligent video bar.

• Unique 180° field of view keeps everyone in the picture at a safe distance
• Virtual Director intelligently adjusts the video in real time for more immersive meetings
• Safety Capacity and Room Usage Insights generates anonymous room occupancy data for all your meeting rooms at once
• Network-connected system enables easy remote management
• Real-time whiteboard streaming for more inclusive remote collaboration
• Uniquely advanced system architecture powers a range of intelligent features
• Plug-and-play for fast set-up and maximum ease of use
• Intelligent Zoom automatically adjusts the field of view to include everybody in the conversation

TECHNICAL SPECIFICATIONS

General info

• Box contents PanaCast 50, Power supply, Wall mount, USB-C to USB-A cable 2m/6.6ft (USB 3.0)
• Packaging dimensions (WxHxD) 685mm x 167mm x 130mm | 27in x 6.6in x 5.1in
• Main unit dimensions (WxHxD) 650mm x 80mm x 125mm | 25.6in x 3.1in x 4.9in
• Weight 2200g | 77.6oz
• Certifications and compliance Microsoft Teams, Microsoft Teams Rooms (with separate Microsoft Teams Rooms certification for integrated Content Camera), Zoom Rooms, Zoom

Video

• Number of cameras 3
• Type of camera Panoramic multi-camera array
• Camera resolution 13 megapixels
• Zoom Up to 6x lossless digital zoom
• Field of view Horizontal: 180°, Vertical: 54°
• Resolution Panoramic-4K: 3840 x 1080 @ 30 fps
• Intelligent zoom Yes
• Virtual director Yes
• Vivid HDR Yes

Audio

• Speakers 2 x 2″ (50mm) woofers, 2 x 3/4″ (20mm) tweeters
• Speaker frequency range 80Hz – 20000Hz
• Number of speakers 4
• Automatic Speaker Detection Yes
• Microphone type 8 microphone beamforming array
• Number of microphones 8
• Microphone sensitivity -37dBFS
• Microphone frequency range 100Hz – 8000Hz
• Microphone bandwidth 100Hz – 8Hz

Software & Apps

• System requirements Compatible with Windows 10, compatible with macOS 10.15 and later, including macOS 11.x
• Compatible software and apps Jabra Direct, Jabra Sound+, Jabra Xpress
• Integrated PeopleCount Yes
• Software Development Kit (SDK) Yes
• Whiteboard Sharing / Content Camera Yes
• Ease of use Manual Pan-Tilt-Zoom (PTZ) Yes

Connectivit

• Connectivity USB, USB-C, Ethernet (RJ45)
• Supported USB versions USB 2.0, USB 3.0

Extended info

• Operating temperature 5°C to 35°C | 41°F to 95°F
• Storage temperature -20°C to 60°C | -4°F to 140°F
