JH330A
- New, cost-effective, unmanaged gigabit switches in 5, 8 and 24 Gb-port configuration with and without PoE+.
- Quality of Service (QoS) and flow control for improved network efficiency
- Energy Efficient Ethernet for low power consumption.
- Plug-and-play with fully automated functions and zero ongoing maintenance.
- Limited Lifetime warranty with 24X7 phone support.
JH407A
- Power Consumption Description : 3 W (maximum)
- Input Voltage : 100 – 240 VAC, rated
- External I/O Ports(5) : RJ-45 autosensing 10/100/1000 ports
JH408A
- SKU : JH408A
- Brand : HPE
- Mode : [JH408A] Switch “HPE” 1405 8G v3
- I/O Ports and Slots : 8 RJ-45 autosensing 10/100/1000 ports
- Memory and Processor : Packet buffer size: 1.5 Mb
- Mounting and enclosure : Desktop (rear port)
- Throughput : up to 11.8 Mpps
- Switch Capacity : 16 Gbps
- MAC address table size : 8192 entries
- Frequency : 50/60 Hz
- AC voltage : 100 – 240 VAC, rated
- Dimension : 6.1(w) x 3.6(d) x 1.4(h) in (15.49 x 9.14 x 3.56 cm)
- Weight :0.5 lb (0.23 kg)
- Warranty : 3 year warranty
JL086A
- Product Code : JL086A
- Device Type : Power supply – hot-plug / redundant
- Input Voltage : AC 100-240 V
JL253A
- SKU : JL253A
- Brand : Aruba
- Model : (JL253A) Switch “Aruba” 2930F 24G 4SFP+
- I/O Ports and Slots : 24 RJ-45 autosensing 10/100/1000 ports, 4 SFP/SFP+ 1G/10G ports
- Switch Capacity : 128 Gbps
JL254A
- Additional ports and slots : 1 dual-personality (RJ-45 or USB micro-B) serial console port
- Throughput : up to 112.0 Mp/s
- Switching capacity : 176 Gb/s
- Dimensions : 4.39 x 44.25 x 24.63 cm ( 1.73 x 17.42 x 9.7 in) 1U height
JL255A
- Type : Aruba 2930F 24G PoE+ 4SFP+ Switch
- Additional ports and slots : 1 dual-personality (RJ-45 or USB micro-B) serial console port
- Throughput : up to 95.2 Mp/s
- Switching capacity : 128 Gb/s

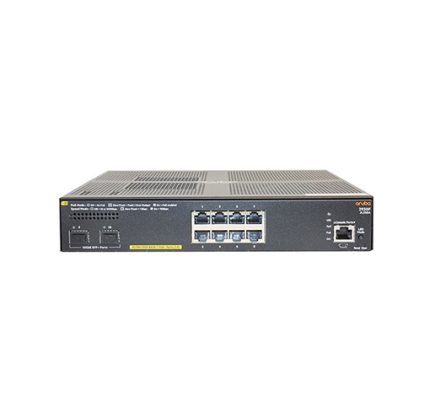

JL258A
- Model : (JL258A) Switch “Aruba” 2930F 8G PoE+ 2SFP+
- I/O Ports and Slots : 8 RJ-45 PoE+ autosensing 10/100/1000 ports, 2 SFP/SFP+ 1G/10G ports
- Memory and Processor : Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMC
- Throughput : up to 41.7 Mpps
- Switch Capacity : 56 Gbps

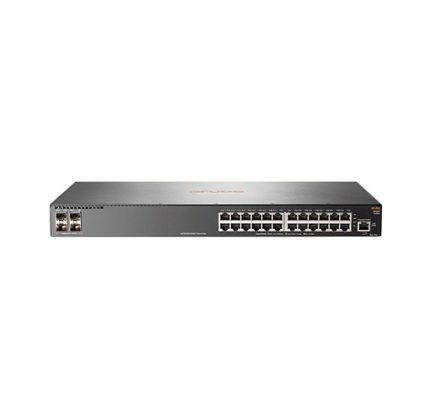

JL259A
- 24 Port RJ-45 10/100/1000 Mbps มาพร้อม Uplink 4 SFP Port 1Gbps
- Throughput : up to 41.7 Mpps
- Routing/Switching capacity : 56 Gbps
- MAC address table size : 32,768 entries

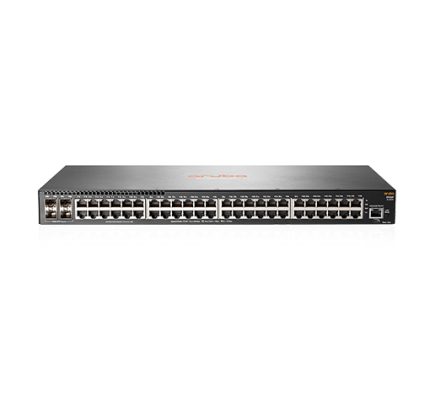

JL260A
- I/O ports and slots : · 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only · 4 SFP
- Additional ports and slots : 1 dual-personality (RJ-45 or USB micro-B) serial console port
- Memory and processor : Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM Packet buffer size: 12.38 GB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
