AT-UHD-CLSO-601
- Four HDMI® and two multi-function analog video inputs
- Mirrored HDBaseTTM and HDMI outputs
- 4K/UHD capability @ 30 Hz
- Integrated 4K scaler
- Automatic input selection and automatic display control
- Audio processing features and breakaway switching
- Control integration features including RS-232 routing to local and remote devices
- PoE (Power over Ethernet) source – remotely powers compatible HDBaseT endpoints

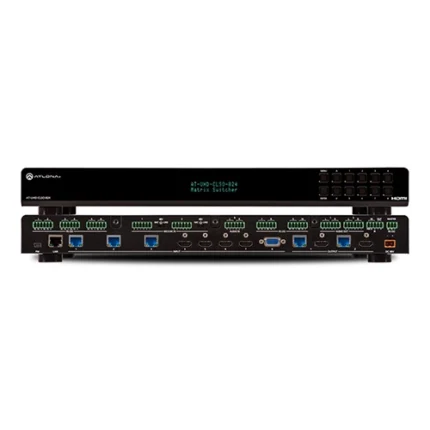

AT-UHD-CLSO-824
- Three HDBaseTTM four HDMI®, and one multi-function analog video input
- Dual, mirrored HDBaseT and HDMI outputs
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Audio processing features plus matrix mixing for mic and program audio
- Control integration features including RS-232 routing to local and remote devices
- PoE (Power over Ethernet) source – remotely powers compatible HDBaseT endpoints
AT-UHD-EX-100CE-RX
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
- HDBaseTTM receiver for HDMI®, Ethernet, power, and control up to 330 feet (100 meters)
- Remotely powered via PoE (Power over Ethernet)
- Receives RS-232, IR, CEC, and Ethernet control signals over HDBaseT
- Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats
AT-UHD-EX-100CE-TX
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
- HDBaseTTM transmitter for HDMI®, Ethernet, power, and control up to 330 feet (100 meters)
- Local AC powering – PoE (Power over Ethernet) source
- Transmits RS-232, IR, CEC, and Ethernet control signals over HDBaseT
- Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats
AT-UHD-EX-100CE-TX-PD
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
- HDBaseTTM transmitter for HDMI®, Ethernet, power, and control up to 330 feet (100 meters)
- Remotely powered via PoE (Power over Ethernet)
- Transmits RS-232, CEC, and Ethernet control signals over HDBaseT
- Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats
AT-UHD-EX-70C-RX
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
- HDBaseTTM receiver for HDMI®, power, and control up to 230 feet (70 meters)
- Remotely powered via PoE (Power over Ethernet)
- Receives RS-232, IR, and CEC control signals over HDBaseT
- Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats
AT-UHD-EX-70C-TX
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
- HDBaseTTM transmitter for HDMI®, power, and control up to 230 feet (70 meters)
- Local AC powering – PoE (Power over Ethernet) source
- Transmits RS-232, IR, and CEC control signals over HDBaseT
- Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats
AT-UHD-SW-5000ED
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Two HDBaseTTM and three HDMI® inputs
- Mirrored HDBaseT and HDMI outputs
- Automatic input selection and automatic display control
- TCP/IP, RS-232, and IR control
- EDID and HDCP management
- Front panel volume control and indicator
- PoE (Power over Ethernet) source – remotely powers compatible HDBaseT endpoints

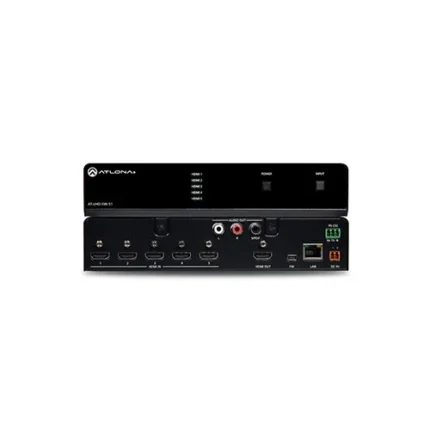

AT-UHD-SW-51
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Five HDMI® inputs
- HDMI output
- Automatic input selection
- TCP/IP, RS-232, and IR control
- EDID and HDCP management
- Supports ARC – Audio Return Channel with analog and S/PDIF audio outputs

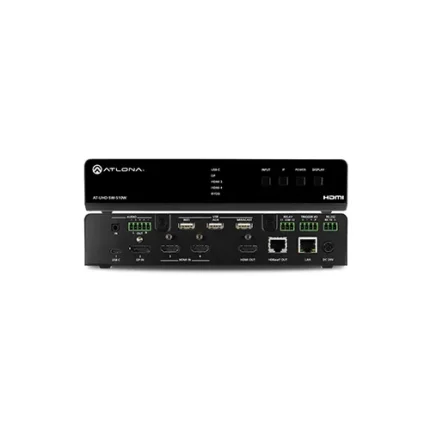

AT-UHD-SW-510W
- Native wireless AV casting – no app required
- Display control and automation
- Moderate between multiple presenters
- Room control and triggering capability
- Universal AV inputs – USB-C®, HDMI®, DisplayPortTM
- Flexible network deployment options
- Matrix switching with local and long-distance outputs
AT-UHD-SW-510W-EU
The Atlona AT-UHD-SW-510W is a 5×2, multi-format matrix switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, plus wireless connectivity for mobile devices.
