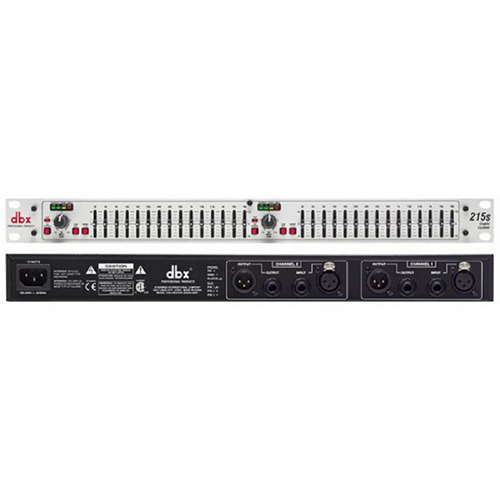

Equalizer ยี่ห้อ DBX รุ่น 215SV
- Dual 15-band, 1/3-octave Constant Q frequency bands
- Switchable boost/cut ranges of ±6 or ±12 dB
- Front panel bypass switch
- ±12 dB input gain range
- 4-segment LED ladders for monitoring output levels
- XLR and TRS Inpts and Outputs
- Frequency Response of <10Hz to >50kHz
- Dynamic range of greater than 108dB
| แบรนด์ | DBX |
|---|---|
| Model | 215SV |
| I/O | • 2 Input 2 Output |
| Input Connector | 1/4″” TRS, female XLR (pin 2 hot) |
| Output Connector | 1/4″” TRS, male XLR (pin 2 hot) |
| No. of Frequency Band | • Dual 15-band |
| Bypass Switch | • Bypasses the graphic equalizer section in the signal path |
| Low Cut Switch | • Activates the 50Hz 12dB/octave Bessel high-pass filter |
| Limitter | • No |
| Ranges Switch | • Selects either +/- 6dB or +/- 12dB slider boost/cut range |
| Noise Reduction | •No |
| AFS | •No |
| Crossover Filter Type | •No |
| Phase Invert Switch | •No |
| Mode Switch | •No |
