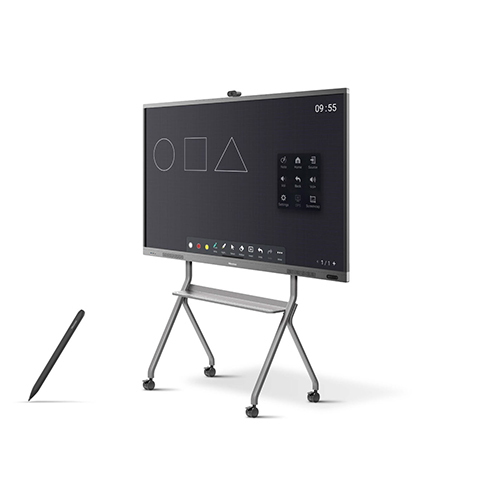

Interactive Display panel

• Size: 75’’
• Backlight: D-LED
• Resolution: 3840 x 2160
• Brightness: 370cd/m²(typ.)
• Contrast ratio: 1200:1 (typ)
• Response Time: 8ms
• Refreshing Frequency: 60Hz
• Viewing angle: 178°(H) / 178°(V)
• Lifetime: 50,000hrs
• Color Gamut: 85%
• Display Colours: 1.07B(10bit)

System

• OS: Android 8.0

Speaker

• Audio Output Power: 2x15W/8Ω

Connectivity

• Input: HDMI IN x 2, DP IN x 1, OPS(optional) x1, LAN x 1, USB x 4 (1 for Camera), Type-C x 1, Touch x 1, RS232 IN x 1
• Output: HDMI OUT x 1, S/PDIF OUT x 1, Audio OUT x1

Power

• Power Requirements: AC 100 V ~ 240 V, 50/60 Hz
• Power Consumption Without OPS: 350W

Touch

• Sensing Type: Infrared Touch Frame
• Surface Protection: 4mm Anti-Glare Glass
• Infrared Touch: ≤20 points
• Touch Accuracy: 90%(±1mm)
• Response Time: ≤8ms
• Minimum Touch Object: ≥2mm

Physical

• Housing Color: Black
• Product Size (W x H x D): 1718 x 1040 x 102mm
• Package Size (W x H x D): 1886 x 1215 x 304mm
• Net Weight: 47.5kg
• Packed Weight: 61kg
• VESA: 600x400mm, 4-M8 screw

Certification

• Standard Certification: CB,CE,cTUVus,CEC,FCC,ICASA
• EAN: 6973172940860

What’s in the box

• User manual
• Stylus Pen x 2
• Remote control
• Hanging Wheel x 4
• Wireless Cast x 1
• Power Cable
• Battery x 2
• Wall Mount Bracket x 1
