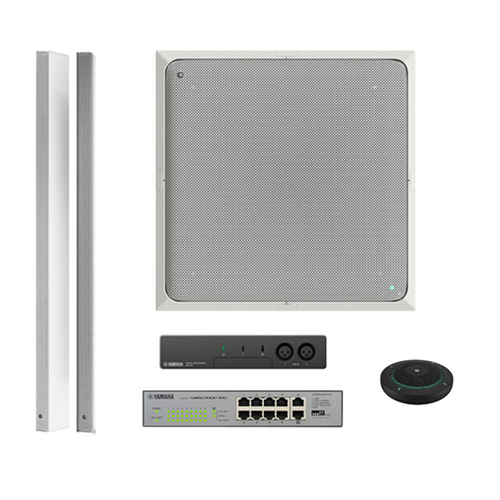

This Yamaha ADECIA Ceiling Microphone Bundle with Speakers & Switch includes a white RM-CG beamforming ceiling microphone, an RM-CR remote conference processor, a pair of white VXL1W-16P slim line-array speakers, and an SWR-2311P-10G Dante-optimized network switch with PoE. Featuring world-renowned Yamaha technology, the ADECIA professional communication system delivers consistent, crystal-clear audio capture and accurate sound reproduction for highly intelligible speech and natural-sounding conversations in conference calls, video conferencing, remote collaborations, and distance learning. It is well suited for small- to medium-sized training rooms, conference rooms, classrooms, multipurpose rooms, or boardrooms.
Providing full coverage from sound input to output, this complete ADECIA system enables organizations to overcome implementation, configuration, and room acoustic challenges. All components work seamlessly together (from the microphone to the speakers, along with the networking and communication equipment) thus reducing costs, and installation complexities. The system can automatically recognize all the connected devices and quickly perform audio routing to minimize your setup time. Using the Auto Tuning function, the system is also capable of analyzing the acoustic environment of your room (accounting for the location of the speakers, microphone, reverberation, and echo behavior) and automatically adjust the DSP parameters, giving you the best audio in the shortest time—with optimal sound clarity.
The RM-CG array microphone easily mounts within existing tiles in the ceiling of your conference room and blends in with most of today’s drop ceilings. It features four auto-tracking beams designed to capture the simultaneous speech of multiple speakers whether the participants are seated, standing, or moving across the room and no matter how challenging the acoustics of your room.
Equipped with various interfaces such as USB, Bluetooth, SIP, and audio input/output terminals, the system can be used for web-conferencing via your favorite apps (including Zoom, Microsoft Teams, Skype, and more) and for telephone-line conferences. Supporting Windows, macOS, iOS, and Android as well as compliant with market-leading UC applications, ADECIA gives you the flexibility to customize your audio-conferencing system to your specific needs.
The two VXL1W-16P line-array speakers provide clear sound distribution to all participants in the room. Their slim, 2″ wide design allows for easy installation in locations with limited space, while complementing the décor of your modern conference room.
The system uses the Dante audio network standard for audio and data transmission between devices, and the PoE method to supply power. This enables you to quickly connect the microphone, speakers, and processor to the PoE-enabled SWR-2311P-10G network switch, each using a single Cat 5e/6 cable for both audio/data signals and PoE power.
Compatible with Dante, the RM-TT is used with the the RM-CR audio processor, which offers an easy setup with auto configuration. Installation is done through a LAN cable (available separately) that connect the unit to the PoE switch. Up to eight microphones can be used for scalability.
- Clear Speech for Audio/Videoconferencing
- RM-CG Ceiling Array Microphone (White)
- VXL1W-16P Line-Array Speakers (White)
- SWR2311P-10G Network Switch
- RM-CR Remote Conference Processor
- 4 Auto-Tracking Beams
- USB, VoIP/SIP, Analog, and Bluetooth I/O
- PoE+ Dante Network Cable Connection
- ADECIA RM-TT Wired Tabletop Array Microphone
Specs
| Audio I/O | Dante: 1 x Input, 2 x Outputs |
| Sampling Rate | 48 kHz |
| Bit Depth | 24 Bit |
| Latency | 56 ms (Except Dante Connection) |
| Frequency Response | 160 Hz to 16 kHz (-10 dB) |
| SPL Level | 117.8 dB Maximum Input Level of SPL (0 dBFS) |
| Self Noise | -0.8 dBA |
| SNR | 94.8 dB (Ref. 94 dB SPL at 1 kHz) |
| Sensitivity | -23.8 dB/Pa |
| Dynamic Range | 118.6 dB |
| Signal Processing | Multi-Beam Tracking, Acoustic Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto-Gain Control, User Program EQ, Output Gain |
| Connector | RJ45 |
| Ethernet | Dante Audio/Dante Control, Remote Control, WebUI, PoE+ |
| Cable Requirements | Cat 5e or Higher (STP Recommended) |
| Indicator | Front Indicator (Mute/Unmute & Status) Network Port Indicator |
| Power | PoE (IEEE 802.3af), 48 VDC |
| Power Consumption | 7.2 W, Maximum |
| IP Rating | Dust Protection: IP5X Equivalent |
| Plenum Rating | UL2043 (With Junction Cover) |
| Temperature & Humidity | Temperature in Operation: 32 to 104°F / 0 to 40°C
Temperature in Storage: -4 to 140°F / -20 to 60°C Humidity in Operation: 30 to 90% Humidity in Storage: 20 to 90% |
| Color | White |
| Dimensions (W x D x H) | 22 x 22 x 3.5″ / 560 × 560 × 90 mm (Includes Protrusion/Microphone Panel: 0.86″ / 22 mm) |
| Weight | 12.3 lb / 5.6 kg |
| Frequency Response | 20 Hz to 20 kHz |
| Sampling Rate | 48 kHz |
| Bit Depth | 24 Bit |
| Latency | 8 ms (Dante In to USB Out, Includes Signal Processing) |
| Audio I/O | Dante: 16 In x 16 Out USB: USB 2.0. Audio Class 1.0, Input: 2 Channels, Output: 2 Channel at 48 kHz Microphone: 2 x XLR-3-31 Type (Balanced, 2-Pin Hot) Inputs Aux: RCA Unbalanced (Line Level), Input: 2 Channels, Output: 2 Channels Speaker Out: RCA Unbalanced (Line Level), Output: 2 Channel |
| Audio Input Levels | Mic In 1,2: -46 dBu (Nominal) Aux In L,R: -14 dBV (Nominal) |
| Analog Output Levels | Aux Out L, R: -14 dBV (Nominal) +6 dBV (Maximum, 1 Kilohm Source) Speaker Out L, R: -14 dBV (Nominal) +6 dBV (Maximum, 1 Kilohm Source) |
| Bluetooth | Version 4.2 Supported Profiles: HFP (1.6), A2DP, AVRCP Supported Codec: CVSD, SBC, mSBC Wireless Output: Class 2 Maximum Communication Distance: 32.8′ / 10 m (No Obstacles) Radio Frequency (Operational Frequency): 2402 to 2480 MHz Maximum Output Power (EIRP): 4.0 dBm (2.5 mW) |
| SIP | Call Handling: Dial, Answer, Hold, Resume, Forwarding, Do Not Disturb, Call ID, and Voice Mail Notifications (Switch Configured) Call Bridging: Supports Bridging SIP, USB, BT, and AUX Calls. Join, Split, Hold, Resume, 5+1 Lines: Up to 2 SIP Calls, 1 USB Call, 1 Bluetooth Call, 1 Aux, Plus the User Codecs: G.711, G.722HD, G.729ab, and G.726 DTMF Support: RTP Event, SIP In-Band, SIP Info Package Security: SRTP Support (RFC 1889), IETF SIP Support (RFC 3261 and Companion RFCs) |
| Ports | Ethernet Port 1 (Dante) Dante, Remote Control, Web UI, PoE+ Ethernet Port 2/3 (Corporate) Corporate Network, Remote Control, SIP, Web UI USB Network (Front) USB 2.0, Network Class: WebUI, Fixed IP |
| Cable Requirements | Ethernet Ports 1, 2/3 : Cat 5e or Higher (STP) Front USB Port: USB Cable (Type-A to Micro-USB) |
| Power Requirements | PoE+ (IEEE 802.3 at LLDP, 48 VDC) Maximum Power Consumption: 15 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Humidity (Non-Condensing) | 30 to 90% |
| Indicators | Power Indicator Status Indicator Bluetooth Indicator 3 x Network Port Indicators |
| Dimensions (D x H x W) | 10.2 x 1.7 x 8.5″ / 260 x 44 x 215 mm |
| Weight | 3.5 lb / 1.6 kg |
| LAN Port | Standard: IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T) Number of Ports: 10 Communication Mode: Auto Negotiation Connector Type: RJ45 MAC Address: Printed on Top-Surface Label Polarity: Straight/Cross Automatic Detection |
| Combo Ports | LAN Ports: IEEE 802.3 (1000BASE-T) 2 Ports (Use Is Mutually Exclusive with SPF Ports) SFP Ports: SFP (Small Form-Factor Pluggable) 2 Ports (Use Is Mutually Exclusive with LAN Port) |
| Console Port | RJ45 (RS-232C), USB Mini-B (5-Pin) (USB2.0): 9600 Bit/s |
| PoE | Ports Available for PoE Power Supply: 8 PoE Standards: IEEE 802.3at Power Supply System: Alternative A Per Port: 30 W All Ports: 240 W |
| microSD Card Slot | Standard: SD/SDHC Number of Slots: 1 |
| Indicators | Power, microSD, LED Mode, LAN Port, SFP Port |
| Operating Environment | Ambient Temperature: 32 to 104°F / 0 to 40°C Ambient Humidity: 15 to 80%, Non-Condensing |
| Storage Environment | Ambient Temperature: -4 to 122°F / -20 to 50°C Ambient Humidity: 10 to 90%, Non-Condensing |
| Power Supply | Input Power: 100-240 VAC, 50/60 Hz |
| Maximum Power Consumption | 280 W |
| Dimensions (W x H x D) | 8.7 x 11.6 x 1.7″ / 220 x 294 x 42.4 mm |
| Weight | 5.1 lb / 2.3 kg |
| Speaker Type | Full-Range, Powered Speaker, Bass Reflex |
| Frequency Range | 80 Hz to 20 kHz (-10 dB) |
| Nominal Coverage Angle | Horizontal: 170°
Vertical: 25° (+12.5 to -12.5°) |
| Effective Coverage | Horizontal: 180°
Vertical: 30° (+15 to -15°) |
| Components | LF-HF: 16 x 1.5″ / 3.75 cm Cones |
| Maximum Output Level | 102 dB SPL with PoE+(IEEE 802.3at), at 3.3′ / 1 m, On Axis |
| Power | Dynamic: 15 W with PoE+ (IEEE 802.3at), 6 W with PoE (IEEE 802.3af)
Continuous: 15 W with PoE+ (IEEE 802.3at), 6 W with PoE (IEEE 802.3af) |
| I/O Connectors | 1 x RJ-45 (Dante) |
| Protection Circuits | Speaker Processing: Clip Limiting, Integral Power Protection
Amplifier Protection: Overcurrent Protection, Over-Temperature Protection, Undervoltage Lock Out, DC Detection, Clock Detection Power Supply Protection: Overvoltage Protection, Undervoltage Lock Out |
| Cooling | Natural Convection |
| Power Requirements | PoE+(IEEE 802.3at), PoE(IEEE 802.3af) |
| Power Consumption | Idle: 3 W, 1/8
Pink Noise: 6 W with PoE+(IEEE 802.3at), 4.3 W with PoE(IEEE 802.3af) |
| Magnetic Shielding | No |
| Color | White |
| Dimensions (W x H x D) | 2.1 x 44 x 4″ / 54 x 1120 x 104 mm (Speaker Only) |
| Weight | 11 lb / 5 kg (Speaker Only) |
Yamaha RMTT Specs
| Color | Black |
| Frequency Response | 160 Hz to 16 kHz (-10 dB) |
| Sampling Rate | 48 kHz |
| Bit Depth | 24-Bit |
| Latency | 57ms (Including Signal Processing) |
| Dante | 1 x In 2 x Out |
| Maximum Input Level | 106.8 dB SPL |
| Self Noise | 6.3 dBA SPL |
| SNR | 87.7 dBA (Ref. 94 dB SPL at 1 kHz) |
| Sensitivity | -12.8 dBFS/Pa |
| Dynamic Range | 100.5 dBA |
| Signal Processing | Auto Voice Tracking
Selectable Polar Pattern: Cardioid, Hypercardioid, Supercardioid, Omni, Bidirectional, Toroidal AEC, NR, Dereverberation, Auto Mixer, AGC, User PEQ, Output Gain |
| Indicators | Mute Indicator (Mute/Unmute)
Status Indicator (Ring) Network Port Indicator |
| Ethernet | Dante Audio/Dante Control, Remote Control, Web UI, PoE |
| Cable Requirements | Cat 5e or Higher (STP) |
| Power Requirements | PoE (IEEE 802.3af) |
| Maximum Power Consumption | 4.5 W |
| Temperature | Operation: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C |
| Humidity (Non-Condensing) | Operation: 30 to 90%
Storage: 20 to 90% |
| Dimensions (W x D x H) | 5.5 x 5.5 x 1.6″ / 140 x 140 x 41.5 mm |
| Weight | 10.9 oz / 310 g |
