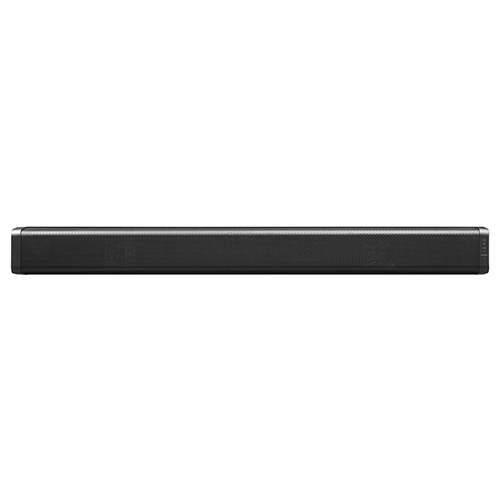

Integrated Audio Collaboration System ยี่ห้อ TOA รุ่น AM-CF1B
The AM-CF1 is an audio system for conference rooms which incorporating TOA‘s proprietary array microphone technology, digital signal processing and 2-way active speakers. While you can see the clearer image via any video conferencing system, are you hearing conversation clearly? High quality loudspeakers, and array microphone which collects sound ideally by detecting and tracking voice in real-time will make team collaboration more productive and your presentation more attractive.
| Power Source | 12 V DC (supplied from the specified AC adapter) or 52 V DC (supplied from the specified PoE extender) | |
|---|---|---|
| Current Consumption | Under 3.5 A | |
| Inputs | USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1 micro-B port Bluetooth: 2 channels, Codec: 1 channel, RCA pin jack, -10 dB*1, 10 kΩ, unbalanced type AUX: 2 channels, RCA pin jack, -10 dB*1, 10 kΩ, unbalanced type |
|
| Outputs | USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1 micro-B port Bluetooth: 2 channels, Codec: 1 channel, RCA pin jack, -10 dB*1, 600 Ω, unbalanced type AUX: 2 channels, removable terminal block (6 pins), 4 dB*2, 600 Ω, balanced (electronically-balanced) type Internal speaker: 2-way x 2 (woofer x 2, tweeter x 1) |
|
| Contact Inputs | 2 inputs, removable terminal block (6 pins), no-voltage make contact | |
| Control Outputs | 2 outputs, removable terminal block (6 pins), no-voltage make contact, relay contact output | |
| Network I/F | 10BASE-T / 100BASE-TX, RJ-45 | |
| Array Microphone | Undirectional electret condenser type | |
| Frequency Characteristics | 20 Hz – 20 kHz (AUX IN – AUX OUT) | |
| Operation Section | Power Switch, Bluetooth pairing, Mute, Volumn Up/Down | |
| Indicators | Power (Blue/Green/Orange/Red), USB connection (Green), Bluetooth (Blue), Multifunction (Green/Red) | |
| Operating Temperature | 0 – 40°C | |
| Operating Humidity | 90% RH or less (no condensation) | |
| Finish | Body | Aluminum, Black |
| Punched Net | Steel, Black (RAL 9005 equivalent) | |
| Side Cover | ABS resin, Black | |
| Dimension | 800 (W) x 83.2 (H) x 85.8 (D) mm | |
| Weight | 4.6 kg | |
