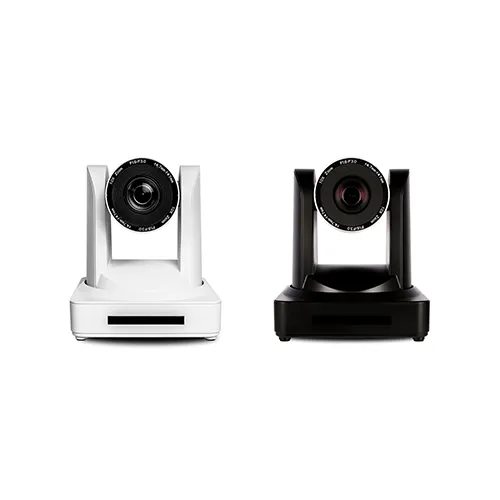

video conferencing ยี่ห้อ ATLONA รุ่น AT-HDVS-CAM-W
Features:
- Designed for soft codec applications
- USB 2.0 interface for video and camera control
- High quality H.264 real-time HD streaming (future)
- Universal PC compatibility through standard UVC (USB Video Class) driver
- Compatible with a wide range of soft codecs and unified communications (UC) platforms
- High performance imaging, fine detail, and color rendering with 1/2.8″ low-noise, HD CMOS sensor
- Available video resolutions from 176×144 up to 1080p @ 30 Hz
- Fast and accurate auto focus, plus auto white balance and auto exposure modes
- Fast and quiet pan and tilt mechanism
- Multi-element zoom lens with 10x optical zoom and a 60.9° horizontal field of view
- Picture controls available for brightness, color, saturation, contrast, sharpness, and gamma
- TCP/IP, RS-232, USB, and IR control – convenient handheld IR remote control included
- Up to 255 camera presets available, 10 accessible from IR remote
- Supports VISCA camera control protocol
- PTZ camera control available from popular soft codec and UC clients such as Skype for Business
- Easy, GUI-based configuration using integrated web server
- Camera can be mounted on a wall, or inverted for ceiling installation
Specifications:
- Video
- HD/SD/VESA (all resolutions are @30/25/20/15/10/5Hz): 1080p, 720p, 1680×896, 1024×768, 1024×576, 960×540, 800×600, 640×360, 720×576, 640×480, 352×288, 320×240, 320×180, 176×144
- Optical Zoom: 10X, f = 4.7 ~ 47 mm
- Viewing Angle: 6.43° (telephoto), 60.9° (wide-angle)
- AV: F1.6 – F3.0
- Minimum Illumination: 0.5 lm, F1.8 with Automatic Gain Control ON
- Video Compression: H.264, H.265
- Control Protocol: VISCA/Pelco-D/Pelco-P
- Network Protocol: RTSP/RTMP, ONVIF
- Pan Rotation: ±170°
- Tilt Rotation: -30° ~ ±90°
- Pan Control Speed: 0.1 – 180° / sec
- Tilt Control Speed: 0.1 – 80° / secTemperature
- Operating 14 to 122F
- Storage -14 to 140F
- Operating Humidity (RH): 20% to 95%, non-condensing
- Storage Humidity (RH): 20% to 80%, non-condensingPower
- Consumption 12 W
- Supply: Input: 110 – 220 V AC, 50/60 Hz; Output: 12 V DC, 1 AGeneral
- H x W x D: 6.59 x 5.90 x 5.90 in.
- Weight: 3.08 lb
Item Includes:
- 1 Atlona AT-HDVS-CAM-W PTZ Camera
- 1 Installation guide
- 1 Wall mounting bracket
- 1 IR remote control
- 1 USB Type-A male to male cable
- 1 Lens cap
- 1 External universal power supply
Warranty:
- Award-winning 10 year limited product warranty
