Cardioid Condenser Microphone ยี่ห้อ Audio-Technica รุ่น ATM73cW

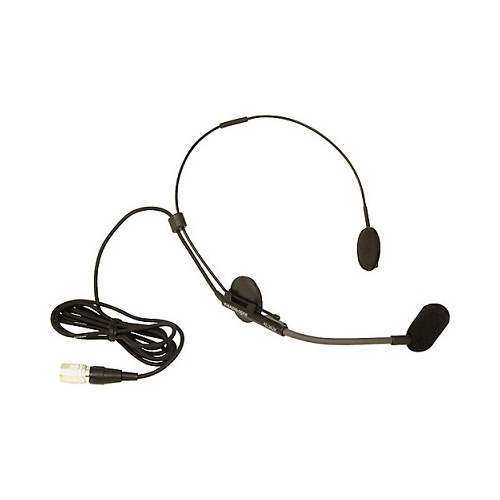

ATM73a Cardioid Condenser Headworn Microphone, less power module. 55” (1.4 m) permanently attached miniature cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack transmitters. Includes windscreens. See ATM73a.
Features
- Locking 4-Pin cW-Style Connector
- For cW-Style Bodypack Transmitters
- 40 Hz to 15 kHz Frequency Response
- 55″ Cable Length
- Includes Windscreens
Specs
Microphone
| Sound Field | Mono |
| Capsule | Condenser |
| Polar Pattern | Cardioid |
Performance
| Frequency Range | 40 Hz to 15 kHz |
| Maximum SPL | 132 dB SPL Peak |
| Impedance | 270 Ohms |
| Sensitivity | 56 dB |
| Dynamic Range | 97 dB A-Weighted |
| Signal-to-Noise Ratio | 59 dB A-Weighted |
Connectivity
| Output Connector | 4-Pin Hirose |
| Cable Length | 55″ / 1.40 m |
Power
| Operating Voltage | 11 to 52 V |
Physical
| Diameter | 0.39″ / 9.91 mm |
| Weight | 1.1 oz / 31.19 g |
