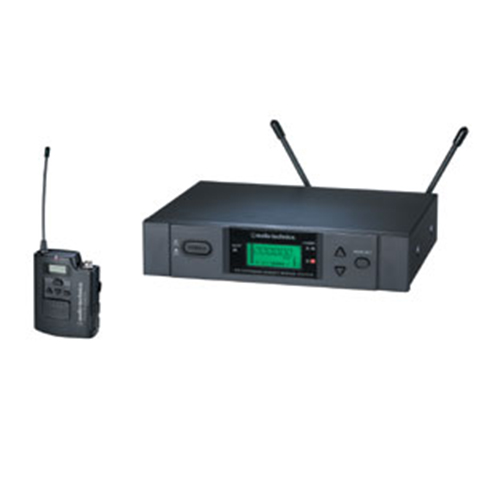

Wireless Bodypack System ยี่ห้อ Audio-Technica รุ่น ATW-3110b

Audio-Technica’s third-generation 3000 Series wireless systems offer up to 1001 selectable UHF frequencies and new features for clear sound & intuitive operation. We’ve simplified selection of usable frequencies, increased system reliability, and illuminated transmitter screens for clear reads on dark stages. It all adds up to the luxury of rock-solid, richly detailed high-fidelity sound.

The versatile ATW-T310b UniPak® body-pack transmitter features a secure 4-pin locking connector compatible with a wide range of microphones, as well as a guitar cable. A 3-position sliding cover on the transmitter’s control panel prevents accidental shut-off or channel-switching. A new locking battery compartment provides a more secure latch and more robust design.

The 3000 Series is available with either a dynamic or condenser handheld transmitter featuring rugged metal construction and slim ergonomic design. The ATW-T341b handheld transmitter includes the stage-proven Artist Elite® AE4100 cardioid dynamic element, and the ATW-T371b handheld transmitter features the studio-quality Artist Series ATM710 cardioid condenser element.

Features

•  996 – 1001 UHF frequencies in one of three UHF frequency ranges
•  Antenna power available for powered antennas & other in-line RF devices
•  Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
•  True Diversity operation reduces dropouts
•  Advanced digital Tone LockTM squelch effectively blocks stray RF and communicates transmitter data for receiver display.
•  Transmitters offer backlit LCD & dual-color LED
•  Locking battery compartment with secure latch and robust design
•  Ground-lift switch helps eliminate audible hum caused by ground loops
•  Balanced and unbalanced audio output jacks

Specifications

• Operating Frequencies UHF band
  Band C: 541.500 MHz to 566.375 MHz (996 frequencies)
  Band D: 655.500 MHz to 680.375 MHz (996 frequencies)
  Band I: 482.000 MHz to 507.000 MHz (1001 frequencies)
  Not all frequencies are available in all areas. Please check with local regulations.
• Minimum Frequency Step 25 kHz
• Modulation Mode FM
• Maximum Deviation ±35 kHz
• Dynamic Range > 110 dB (A-weighted), typical
• Total Harmonic Distortion < 1% (at 1 kHz, ±17.5 kHz deviation)
• Operating Range 100 m (300′), typical
  Open range environment with no interfering signals.
• Operating Temperature Range -5º C to +45º C (23º F to 113º F)
  Battery and LCD performance may be reduced at very low temperatures.
• Frequency Response 70 Hz to 15 kHz (+1 dB, -3 dB)
