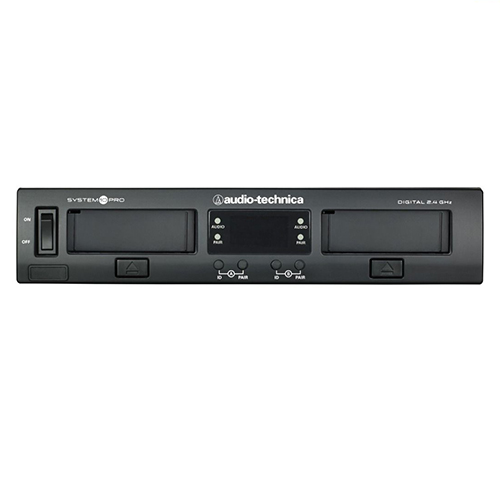

System 10 Pro Rack-mount Receiver Chassis ยี่ห้อ Audio-Technica รุ่น ATW-RC13
TheSystem 10 PRO ATW-RC13fromAudio-Technica is a half-rack chassis that allows you to mount one or two ATW-RU13 receiver units (available separately) to create a wireless receiver setup that is easily rackmounted in portable flight cases or permanent installations. When combined with a transmitter and microphone, the System 10 PRO is well suited for educational facilities, conference rooms, small to mid-sized venues, and houses of worship as well as broadcast studios.
The receiver units can be released from the chassis and mounted remotely (up to 328′ away) via an Ethernet cable (available separately) for improved antenna reception. Up to five chassis (10 receiver units) can be linked using an RJ12 cable, creating a multichannel system with up to 10 channels being used simultaneously.
The easy-to-read display shows the system IDs for the paired transmitters as well as RF signal strength, link statues to additional receivers, and the remaining battery life on the transmitters. Rear-panel connections include balanced XLR and unbalanced 1/4″ output connections as well as output level controls and ground-lift switchs to help eliminate audible hum caused by ground loops.
- Holds 1 or 2 ATW-RU13 Receiver Units
- Mounts Receivers in Rack and/or Remotely
- XLR and 1/4″ Outputs
- RJ12 Links up to 5 Chassis/10 Receivers
- Easy-to-Read ID Display and LEDs
Specifications
| Wireless Transmission | Digital 2.4 GHz |
| Diversity | Frequency, Time & Space Diversity |
| RF Frequency Band | 2400 to 2483.5 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 200′ / 61 m (Line of Sight) |
| Max Systems per Setup | 10 |
| Sample Rate/Resolution | 48 kHz / 24-Bit |
| Latency | 3.8 ms |
| Dynamic Range | >109 dB (Typical) |
| Encryption | None |
| Form Factor | Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Receiver Module Capacity | 2 |
| Number of Audio Channels | 2 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4″ TS Female Unbalanced Output |
| Audio Output Level | XLR Output: 0 dBV (Balanced) 1/4″ Output: +6 dBV (Unbalanced) |
| Frequency Response | 20 Hz to 20 kHz (Dependent on Mic) |
| Network I/O | 1 x RJ12 |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| Antenna | None |
| AC/DC Power Adapter | 12 VDC at 0.5 A (Included) |
| AC Input Power | 100 to 200 VAC, 50/60 Hz |
| Display & Indicators | 1 x LCD (RF Level, Sync, Transmitter Battery Status) |
| Dimensions | 8.3 x 1.7 x 6.7″ / 209.8 x 44 x 169.3 mm |
| Weight | 33.2 oz / 940 g |
