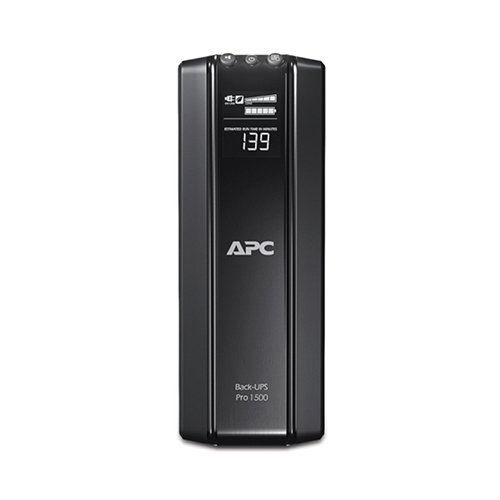

เครื่องสำรองไฟฟ้า UPS ยี่ห้อ APC รุ่น BR1500GI-3Y
| Brand | APC |
| Model | BR1500GI (LCD) |
| Type | Line interactive |
| Rated Capacity | 865Watts / 1.5kVA |
| Nominal Input Voltage | 230V |
| Nominal Output Voltage | 230V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Backup Time | 5-45 นาที (ขึ้นอยู่กับโหลด) |
| Transfer Time | 10 ms typical : 12 ms maximum |
| Display | Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. |
| Input Connections | IEC-320 C14 |
| Output Connections | (5) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup) (5) IEC 320 C13 (Surge Protection) |
| Interface Port | Optional Simple Signalling RS232 cable, USB |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Waveform Type | Stepped approximation to a sinewave |
| Typical recharge time | 8 hour(s) |
| Battery Replacement | APCRBC124 |
| Features | สามารถต่อแบตเตอรี่ภายนอกได้อีก 1 แพ็ค (BR24BPG) เพื่อเพิ่มระยะเวลาสำรองไฟให้นานขึ้น (ขึ้นอยู่กับโหลด) |
| Environment | Operating Temperature : 0 – 40°C Operating Relative Humidity : 0 – 95% Operating Elevation : 0 – 9144meters Storage Temperature : -15 – 45°C Storage Elevation : 0 – 15240meters |
| Output Frequency (sync to mains) | 50 Hz,60 Hz |
| Input voltage range for main | 176 – 294V |
| Input Breaker Capacity | 10.0 A |
| Dimension | (W x D x H) : 11.20 x 30.10 x 38.00 cm |
| Net Weight | 12.70 KG |
| Package Dimension | (W x D x H) : 24.00 x 49.00 x 40.00 cm |
| Gross Weight | 13.16 KG |
| Volume | 47,040.00 cm3 |
