• 100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil.
• Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.

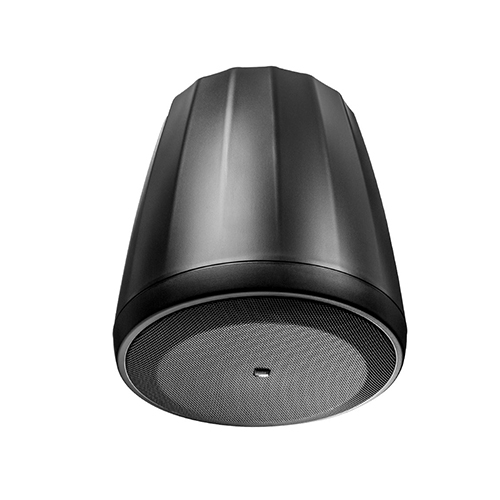

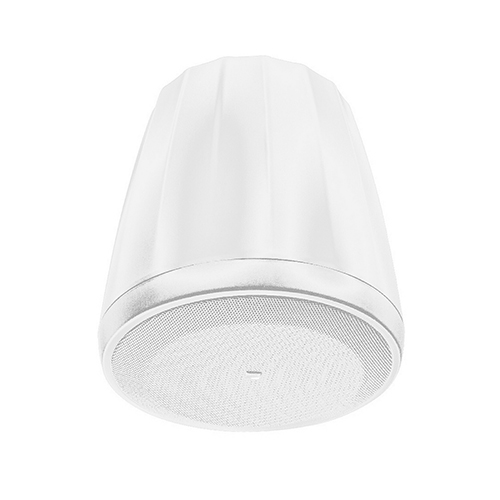

• Stylish design, available in black or white (-WH).
• UL listed (speaker and hanging cable system).
• 8Ω and 70V/100V operation

Specifications

• Frequency Range (-10dB)   65 Hz – 15 kHz
• Frequency Response (±3 dB)  85Hz – 14 kHz
• Power Rating     100 W Continuous Program (2 hrs) 50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)
• Maximum Input Voltage  18.2 V RMS (2 hrs), 36.4 V peak
• Nominal Sensitivity  88 dB Nominal
• Coverage Angle 120° (averaged 1 kHz to 4 kHz)
• Directivity Factor (Q)     6.2
• Directivity Index (DI)      7.3dB (averaged 1kHz – 16kHz)
• Maximum SPL (1m)        105 dB continuous pink noise, 111 dB peak
• Impedance         8Ω
• Transformer Taps   70V: 30W, 15W, 7.5W & 3.7W 100V: 30W, 15W, 7.5W
• Transformer Insertion Loss          0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W
• Drivers 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil
• Enclosure  High impact polystyrene
• Grille    Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
• Outdoor Capability         Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating.
• Input Connectors  Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
• Suspension        Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
• Safety Agency   Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
• Dimensions (H x W x D) 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
• Net Weight (each)           2.35 kg (5.2 lbs)
• Shipping Weight (pair)  6.07 kg (13.4 lbs)
• Included Accessories     Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
• Optional Accessories     MTC-PC60 top panel / terminal cover
• Colors   Available in black or white (-WH). Paintable
