CDE9830

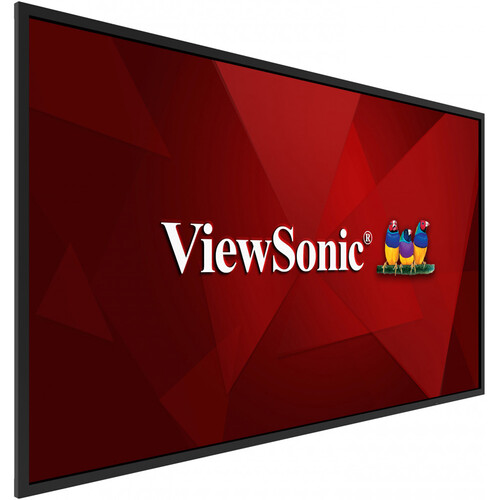

จออินเตอร์แอคทีฟ  ยี่ห้อ ViewSonic รุ่น CDE9830

98″ 4K Presentation Display

• Wireless presentation for enhanced efficiency ​
• Single USB-C cable for 65W power delivery
• 24/7 video playback for continuous communication
• Remote device management with myViewBoard Manager ​
• ProAV compatibility with Crestron, Extron, and AMX​
• Portrait-oriented display for impactful brand signage

1. Speaker
2. Control Panel
3. OPS Slot
4. USB 2.0
5. RS-232
6. USB 3.0
7. USB-C
8. HDMI 1(ARC)
9. HDMI 2
10. HDMI OUT
11. HDMI 3
12. WiFi Slot
13. VESA® Wall Mount (800x600mm)
14. AC IN
15. Power Switch
16. LAN
17. SPDIF

SPECIFICATIONS

Display

• Panel Size: 98″
• Type/ Tech: TFT LCD Module. ADS type, DLED backlight
• Display Area (mm): 2158.848 (H) × 1214.352 (V) (98” diagonal)
• Native Resolution: 3840 x 2160
• Aspect Ratio: 16:9
• Colors: 1.07G (8bits + FRC-)
• Brightness: 500 nits (typ.)
• Contrast Ratio: 1200:1 (typ.), 5000:1 (DCR enabled)
• Response Time: 8ms
• Viewing Angles: H = 178, V = 178 typ.
• Backlight Life: 50,000 hours
• Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
• Bezel: 25/25/25/25 mm (L/R/T/B)
• Orientation: Landscape & Portrait

Platform

• Processor: Quad-core ARM Cortex A55
• RAM: 4GB
• Storage: 32GB

INPUT

• HDMI: 2.1×3 ( 3840×2160 @60Hz, HDMI 1 support ARC)
• RS-232: x 1
• OPS Slot: x 1
• WiFi Slot: x 1

OUTPUT

• HDMI: 2.0 x1 ( 3840×2160 @60Hz )
• SPDIF: x 1

LAN

• RJ45: x 1

USB

• Type A: USB 2.0 x 1; USB 3.0 x 1 (USB 3.0 Support Smart USB)
• Type C: x 1 (Support Smart USB, DP1.2, PD 65W, USB2.0, 100M ethernet)

SPEAKERS

• 10W x2

Embedded OS

• Android 11

POWER

• Voltage: 100-240 VAC +/- 10%
• Consumption: 190 W(typ.) < 0.5W(off)

OPERATING CONDITIONS

• Temperature (º C): 0 to 40℃
• Humidity: 10%-90% RH

Operating Hours

• 7/24

DIMENSIONS (W x H x D)

• Physical (inch / mm): 87.12 x 49.94 x 3.11in/2212.9 x 1268.4 x 79 mm
• Packaging (inch / mm): 92.91 x 56.1 x 11.02 in./2360 x 1425 x 280 mm

WEIGHT

• Net (lb / kg): 153.0 lbs/69.40 kg
• Gross (lb / kg): 199.1 lbs/90.30 kg

REGULATIONS

• cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65

PACKAGE CONTENTS
