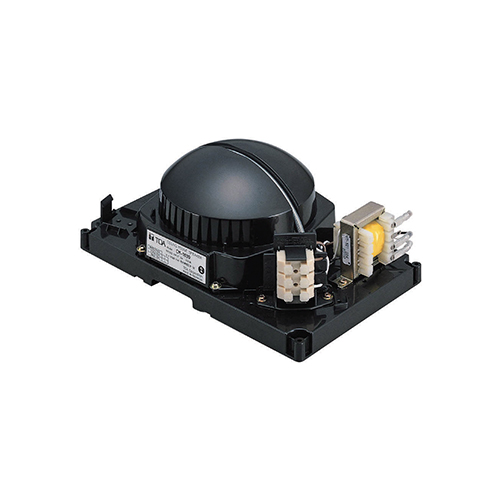

ลำโพงเพดาน  ยี่ห้อ TOA รุ่น CM-760

• Rated Input   :  6 W
• Rated Impedance    : 1.7 kΩ (6 W), 3.3 kΩ (3 W),     (6.7 kΩ (1.5 W), 13 kΩ (0.8 W): Internal wiring must be changed)
• Sound Pressure Level   :  90 dB (1 W, 1 m)
• Frequency Response   :  100 – 16,000 Hz
• Speaker Component    :  12 cm dynamic cone-type speaker
• Dimensions for Fixing Hole    :   φ150 (mounting hole) × 50 (ceiling thickness) mm
• Speaker Mounting Method     :   Spring catch
• Applicable Cables     :   600 V Vinyl-insulated cable (IV wire or HIV wire)   ,  Solid copper wire: φ0.8 – φ1.2 mm   ,  7-core twisted copper wire: 0.75 – 1.25 m㎡
• Connection  :  Push-in connector (Bridging and branch connections possible.)
• Finish  :  Grille: Fire-resistant, high-impact styrene resin  (resin material grade: UL94 V-O or its equivalent), black
• Dimensions   :   215 (W) × 134 (H) × 89 (D) mm
• Weight   :  630 g
• Applicable Panel  :  CP-70 series panel (option): CP-73, CP-77
