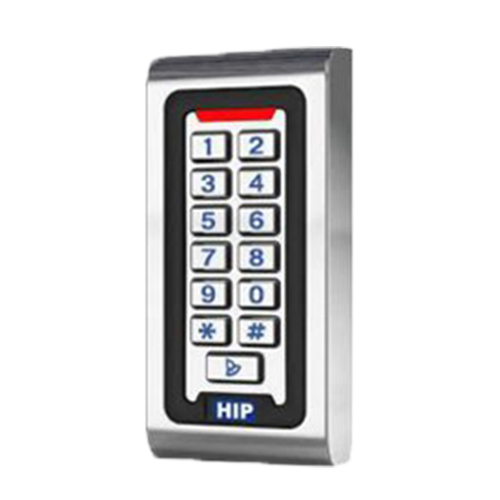

Acess Control ยี่ห้อ hip รุ่น CMG601 M (13 56 MHz)

• Operating Voltage: DC 12V+/-10%
• User Capacity: 2,000
• Card Reading Distance: 3-6 cm
• Active Current: < 60 mA
• Idle Current: 25+/-5 mA
• Lock Output Load: Max 3A
• Alarm Output Load: Max 20A
• Operating Humidity: 10-90% RH
• Waterproof: IP68
• Adjustable Door Relay Time: 0-99 sec
• Adjustable Alarm Time: 0-3 min
• Wiegand Interface: Wiegand 26 bits
• Wiring Connections: Electric Lock, Exit Button, External Alarm and Reader
• Dimensions: L;120 mm x W;48 mm x H;20 mm
