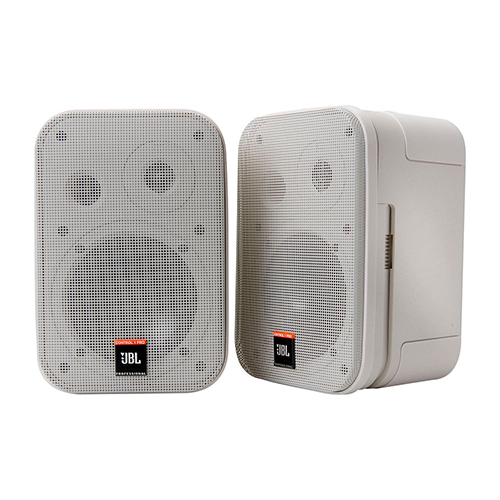

ProfessionalCompact Loudspeaker System ยี่ห้อ JBL รุ่น CONTROL1PRO-WH
The white JBL Control 1 Pro are a pair of compact professional loudspeakers offering high quality at an affordable price for professional or residential applications. The rugged enclosure houses a 5″ woofer and a 0.75″ dome tweeter, which combine to provide a frequency response of 100 Hz to 18 kHz. When powered by a 150W (continuous) amplifier, the speaker provides a maximum SPL of 114 dB. Additionally, the cabinet is magnetically shielded for safe use near video monitors.
The rear of the cabinet features standard spring-loaded speaker terminals for wide compatibility. SonicGuard protection circuitry protects the network and transducers to keep your speakers running smoothly. A ball-and-socket mounting bracket is included for easy installation and positioning flexibility.
Features
- 150W Power Handling
- Woofer: 5″
- Dome Tweeter: 0.75″
- Frequency Response: 100 Hz to 18 kHz
- Maximum SPL: 114 dB
- Full-Range SonicGuard Power Limiting
- Spring-Loaded Terminals
- Includes Mounting Bracket Assembly
Specifications
| Active or Passive | Passive |
| Speaker Configuration | 2-Way |
| Power Handling | 150 W |
| Impedance | 4 Ohms |
| HF Driver | 0.75″ / 19 mm Polycarbonate Dome Tweeter |
| LF Driver | 5.25″ / 135 mm Woofer |
| Frequency Range | 80 Hz to 20 kHz -10 dB |
| Frequency Response | 100 Hz to 18 kHz ±3 dB |
| Maximum SPL | 108 dB (Continuous) 114 dB (Peak) |
| Sensitivity | 87 dB SPL |
| Directivity | 6 (Directivity/Q Factor) 7.8 (Directivity Index) |
| Crossover | 4.2 kHz |
| Protections | Overvoltage |
| I/O Connectors | Push Terminal |
| Color | White |
| Construction Material | Polypropylene |
| Dimensions | 9.25 x 6.25 x 5.6″ / 235 x 159 x 143 mm |
| Weight | 4 lb / 1.8 kg (Each Speaker) |
