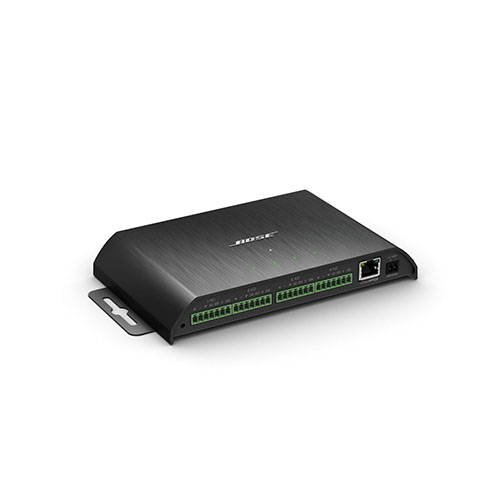

CONTROLSPACE ยี่ห้อ BOSE รุ่น CONTROLSPACE EX 4-CH MIC-GPIO Dante UTB
Features
- One-cable-from-the table connectivity supports PoE+, DanteTM audio networking, logic I/O and LED power to maximize ease of integration
- Broad conference microphone compatibility with 4 high-quality mic/line input channels, each featuring 48V phantom power, 12V LED power, 1 logic input and 2 logic outputs for interfacing with microphone pushbuttons and indicators
- Dante audio networking for connection to other Dante-enabled products over Ethernet-based networks
- Dual network and power connectors allow daisy-chaining of multiple EX endpoints
- Rotatable mounting tabs allow for multiple mounting options
- Low-profile aluminum enclosure with integrated LED indicators for unobtrusive under-table mounting
- Simplified software configuration via ControlSpace Designer software. Supports autodiscovery, auto-routing, and logic presets for microphone LEDs and pushbuttons
- Optional installation accessories include a magnetic mounting plate for single-handed under-table mounting, a microphone extension cable, and a 60 W power supply
- Power and signal indicators
Applications
- Boardrooms
- Medium/large conference rooms
- Courtrooms
- Distance learning
- Auditoriums
- Multi-purpose spaces
Technical Summary
AUDIO INPUTS |
|
| Input Channels | Four (4) analog, balanced microphone/line level |
| Connectors | Four (4) 3.81 mm detachable Euroblock connectors, 7-pin |
| Phantom Power | +48VDC, software selectable per input |
| Control GPIO | 2 logic outputs (100mA low, 8V open, 10mA @ 2.5V high), 1 logic input (0 to 5V, threshold = 1.6V, 2K pull-up to 5V) |
| Gain Settings | 0 / +15 / +30 / +45 dB, software selectable |
| Input Impedance | > 1.8 kΩ at any gain setting |
| Equivalent Input Noise | –115 dBu (+45 dB gain) |
| Maximum Input Level | +20 dBu (using -12 dB gain setting) |
| System THD | < 0.01 % at any gain setting, input signal 3 dB below maximum |
| Frequency Response | 20 Hz — 20 kHz, ± 1 dB |
NETWORK |
|
| Connectors | Two (2) RJ-45, one front (supports PoE+), one rear |
| Audio Over IP | Dante Ultimo X4 |
