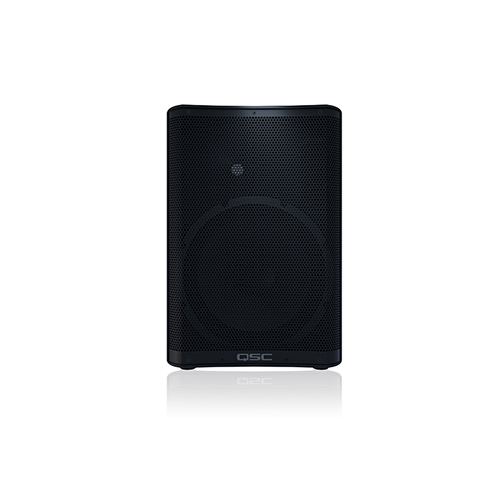

ตู้ลำโพง ยี่ห้อ QSC รุ่น CP12

12-inch Compact Powered Loudspeaker

High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.

• Compact and powerful performance
• 1000 Watt peak power Class-D amplifier module
• Easily selected contours for commonly-used applications
• Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
• Directivity Matched Transition^® (DMT) for consistent frequency response across the entire coverage area
• Light weight and highly portable
• Professional appearance looks great in any application
• Use for main PA, stage monitor, or instrument amplifier
• 35 mm pole socket
• Optional yoke, tote, and outdoor cover accessories
• Complete EASE and CAD information available online

Specifications

• Configuration:   Two-way active loudspeaker
• LF Transducer:   305 mm (12 in), cone
• HF Transducer:  35.6 mm (1.4 in) compression driver
• Frequency Response (-6 dB):     49 – 20 kHz
• Frequency Range (-10 dB):       47 – 20 kHz
• Nominal Coverage Angle:      75° Axisymetric
• Maximum Rated SPL1:   126 dB
• Amplifier:      Class D ,  Peak: 800 W (LF), 200 W (HF)
• Controls:      Power ,  2 × Gain  , Mic Boost Push Switch  , 6-way Contour Selection Switch
• Indicators:    Power LED  ,  2 × Input Signal LED  ,  Input B MIC selected LED  ,  Limiter active LED
• Connectors:       2 × locking XLR/F ¼” combo (Line Input and Mic/Line input)  , 1 × 3.5 mm TRS (Stereo Input)  ,  1 × XLR/M (Mix Output) ,  1 × IEC power connector
• AC Power Input:               Universal power supply 100 – 240 VAC, 50 – 60 Hz
• AC Power Consumption (1/8th Power):  100 VAC, 0.75A – 240VAC 0.31A
• Enclosure Material:      Polypropylene
• Attachment Points:      M8 threaded insert
• Color:    Black (RAL 9011)
• Grille:    18 Gauge powder-coated steel
• Speaker Dimensions (H×W×D):  516 × 350 × 323 mm  20.3 × 13.8 × 12.7 in
• Carton Dimensions (H×W×D):     430 × 430 × 604 mm 17 × 17 × 23.8 in
• Net Weight:    13.7 kg / 30.3 lb
• Shipping Weight:    16.5 kg / 36.4 lb
• Regulatory:     EMC, UL, CB
• Optional Accessories:     CP12 Tote, CP12 Outdoor Cover, CP12 Yoke
