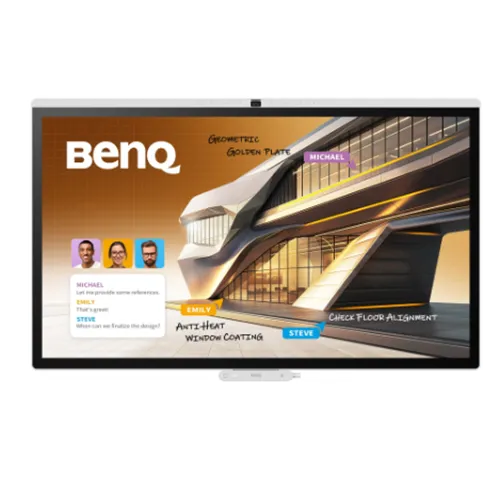

Interactive ยี่ห้อ BENQ รุ่น CP7505

ข้อมูลสเปคทั้งหมด

Panel

• Screen size : 75”
• Panel type : IPS
• Active area : 1650.2 × 928.2 mm
• Aspect ratio : 16:9
• Resolution : UHD 3840 × 2160 pixels
• Response time : 8 ms
• Color depth : 10-bit
• Orientation : Landscape
• Operation hours : 18 hours / 7 days
• Panel brightness (typical) : 450 nits
• Contrast ratio (typical) : 1500:1
• Dynamic contrast ratio : 50,000:1
• Color gamut : 90% NTSC.
• Backlight life (typical) : 50,000 hrs

Glass

• Germ-resistant technology : Nano-ionic silver
• Anti-glare : Yes
• Hardness : 9H tempered

Touch screen

• Touch technology : Capacitive touch
• Touch points : up to 50
• Touch response time : < 5 ms

System

• GPU : Arm Mali-G57 MC2
• CPU : Arm Cortex-A78 × 2 + A55 × 6
• NPU : 10 TOPS
• Memory | Storage : 16GB I 256GB
• OS : Android 15.0 (EDLA)

Connectivity

• HDMI (in | out) : 1 × HDMI 2.0 | No
• USB-A : 2 × 3.0
• USB-C : 1 × 2.0 + 1 × 3.0 (PD 100 W)
• USB-C out : 1 x Type-C (2.0 data / video out / audio out / touch)
• 3.5 mm Line out : Earphone × 1
• OPS slot (for slot-in PC) : 1
• Wi-Fi : Wi-Fi 6
• Bluetooth® : Bluetooth 5.4
• Ethernet : 10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
• RS-232 : 1 | 0

Built-in peripherals

• NFC sensor : Yes
• Ambient light sensor : Yes
• IR sensor : Yes
• Microphone : 8-microphone array (range: up to 12 m | 39ft)
• Speaker : 2 × 25 W
• Camera : 1 (50MP FOV160°)
• Subwoofer : 1 × 40 W

Power

• ENERGY STAR® : Yes
• Power : AC 100-240V 50/60Hz
• Standby power consumption : <0.5 W
• Typical power consumption : 95 W

Physical

• Dimensions (W x H x D) : 1720.6 x 1022 x 98.5mm (67.7 × 40.2 × 3.9 inch)
• Shipping dimensions (W x H x D) : 1880 x 1135 x 220 x mm (74 × 44.7 × 8.7 inch)
• Weight (product I shipping) : 45.1 kg | 58.2 kg (99.4 lbs | 128.3 lbs)
• Mount (screws) : VESA 800 × 400 mm (4 × M8 × 25L)

Environment

• Operating temperature : 0°C ~ 40°C | 32°F ~ 104°F
• Storage temperature : -10°C ~ 60°C | 14°F ~ 140°F
• Storage humidity : 20% ~ 90% RH non-condensing
• Operating humidity : 20% ~ 80% RH non-condensing

Software

• Whiteboarding : EZWrite 6.0
• Wireless screen sharing : InstaShare 2
• Device management : DMS
• Account management : AMS
• Flicker Free : Yes
• Quick access tool : Floating Tool
• Broadcast system : X-Sign Broadcast
• Low Blue Light : Yes

Accessories

• Cables : 1 × HDMI (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft), 1 × USB-C to A (3 m | 9.8 ft), 1 x RS232 (1.8 m | 5.9 ft)
• Wall mount : 1
• Pen : Active x 1, Passive x 1
