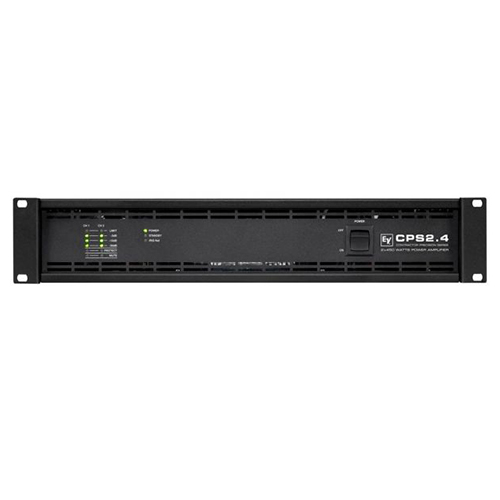

เครื่องขยายเสียง ยี่ห้อ ELECTRO-VOICE รุ่น CPS 2 4-II-230V
Features
- Up to 2 x 650 W into 2 ohms
- Phoenix-type input and output connections
- Remote power-on/off contact
- Rear-mounted attenuators
- Programmable time for custom power-on delay settings
- Module slot for optional RCM-810 card, allowing <a href=”http://irisnet.electrovoice.com/”>IRIS-Net</a> control and monitoring
- Switchable 50 Hz high-pass filter
- Three-stage front-to-rear fans
- Class-AB design
- Complete protection package
Specifications
| Amplifier Gain | 32 dB |
| Analog Inputs | 2, electronically balanced, Phoenix-type |
| Audio Network | No |
| CAN Bus Interface | Optional (RCM-810 card) |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω | 650 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω | 450 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω | 270 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 4Ω | 400 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 8Ω | 200 Watts |
| Cooling | Front-to-Rear, 3-stage fans |
| Crossover Type | Optional Modules |
| DIM 30 | 0.05 % |
| Electronics Type | Amplifier |
| Frequency Response | 10 Hz – 40 kHz ±1 dB |
| Impedance | 2/4/8 Ω |
| Input Impedance (Balanced) | 20 kΩ |
| Input Sensitivity | 2.2 dBu (1.0V) |
| Intermodulation Distortion (SMPTE) | 0.1 % |
| Mains Voltage | 240 V, 230 V, 120 V or 100 V; 50 Hz – 60 Hz (factory configured) |
| Maximum Bridged Output 4Ω | 1300 Watts |
| Maximum Bridged Output 8Ω | 900 Watts |
| Maximum Input Voltage | +21 dBu 8.69 Vrms |
| Network Control (IRIS-Net) | Optional (RCM-810 card) |
| Slew Rate | 25 V/µs |
| Topology | Class-AB |
| Total Harmonic Distortion | 0.03 % |
| Variable Load Drive (VLD) | No |
| Height | 2RU 88.1 mm (3.47″) |
| Width | 482.6 mm (19″) |
| Depth | 421.5 mm (16.59″) |
| Weight Net | 12.6 kg (27.78 lbs) |
