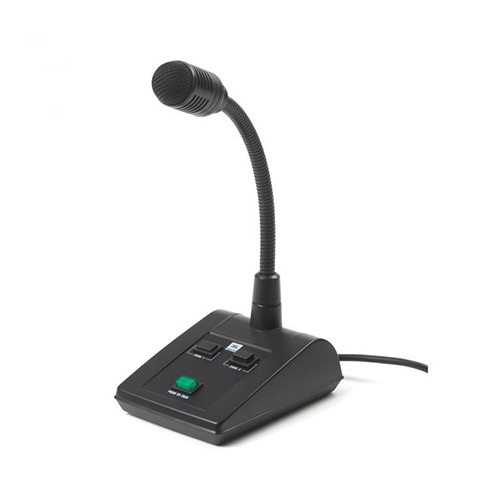

ไมโครโฟนตั้งโต๊ะ ยี่ห้อ JBL รุ่น CSPM-2
The JBL Commercial® CSPM series microphones are dynamic close-talking microphones for paging systems in bars/pubs, theatre lobbies, department stores and more.
A single cable attached to the CSPM-2 contains three conductors for audio (Positive, Negative, Shield) and three conductors for contact closure(Zone 1, Zone 2, Ground). Selecting a zone and pressing and holding the PTT button will route the microphone audio to that zone.
Features
- 1 PTT Button
- 2 Zone Selection Buttons
- Ideal for Paging to 2 Zones
- Ideal for Use with CSM-21 and CSM-32
Specifications
| Capsule | Dynamic |
| Frequency Response | 150 Hz – 15 kHz |
| Sensitivity | Typical 2.2 mV / Pa (-54 dBV) |
| Equivalent Noise Level | 21 dB-A |
| Polar Pattern | Directional – Cardioid |
| Max. SPL | 133 dB (SPL), K=1% |
| Impedance | 530 ohms |
| Protection | Wind and Pop-Protection; Internal foam |
