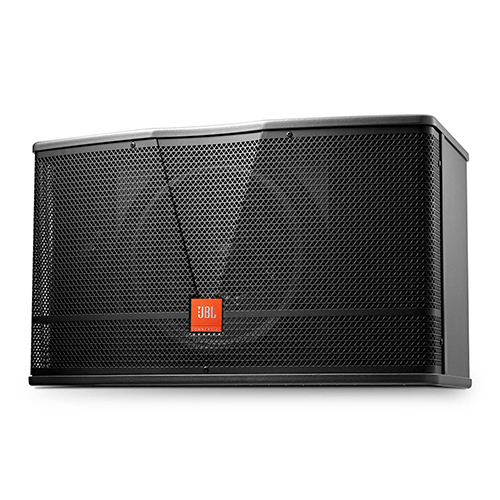

ตู้ลำโพง ยี่ห้อ JBL รุ่น CV1252T

CV1252T is a two-way full-range speaker designed for restaurants, conference rooms, music cafes, hotels, etc. Its especially wide coverage pattern (150°×120°) makes it a perfect choice for installations where the ceiling height is relatively limited.

Features:

• Specially designed12” high performance woofer provides greater power handling and is fitted with demodulating aluminum ring for lower distortion and power compression
• Two (2) 3” paper cone tweeters provide excellent high-frequency response and superb vocal reproduction
• MDF (medium density fiberboard) enclosure with vinyl finish provides grand appearance and durability
• Precisely designed crossover optimizes the frequency response and provides smooth and accurate music reproduction
• Built-in high quality multi-tap 70V/100V transformer
• 150°×120°coverage pattern for even and smooth response on and off axis
• Ideal for installations with limited ceiling height
• Rotatable JBL COMMERCIAL logo for easy coherence to your installation
• White (-WH) color available upon request
• Sound reinforcement for restaurants, conference rooms, hotels, cafes, halls, school rooms, etc.
• High-performance satellite speaker for use with subwoofers.

Specifications

• System Type:     12”, 2-way, bass-reflex
• Frequency Range (-10 dB):           60 Hz – 18 kHz
• Frequency Response(±3dB):       70 Hz – 15 kHz
• Sensitivity(1W@1m):     92 dB
• Nominal impedance:      8Ω(at 8Ω tap setting)
• Maximum SPL(1m):         117 dBcontinuous average (123 dB peak) (at 8Ωtap setting)
• Power Rating (Continuous/Program/Peak):          300 W / 600 W / 1200 W(at 8Ω tap setting)
• Coverage:           150°×120° (H × V)
• Transformer Tap:             8 Ohms, 70 V (20 W / 40 W / 80 W / 160 W), 100 V ( 40 W / 80 W / 160 W)
• Insert Loss:         <1.0 dB at any tap setting
• Low-Frequency Diver:    1 × 12” woofer
• Hight-Frequency Diver: 2 × 3” paper cone tweeter
• Enclosure:           Trapezoid,15 mm MDF
• Suspension:       2 × M10 threaded suspension points
• Exterior color:    Vinyl laminated, black. White(-WH) available upon request.
• Net cover:           Powder coated, 1.0 mm perforated steel
• Input Connector:              Dual RED/BALCK connector in parallel for loop-through.
• Dimensions (H × W × D) :352 mm × 586 mm × 350 mm (13.9 in × 23.1 in × 13.8 in)
• Weight :17.4 kg (38.4 lbs)
