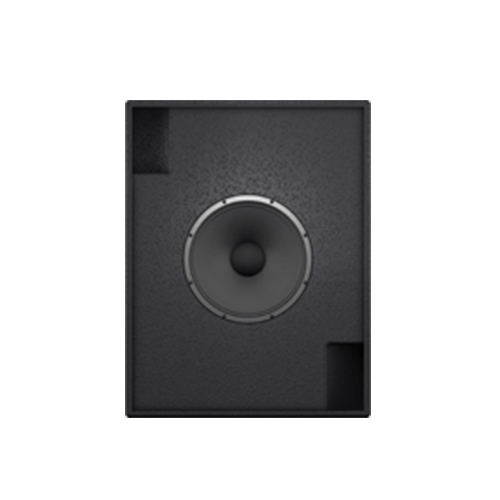

ตู้ลำโพง ยี่ห้อ TANNOY รุ่น DCS115B
Low Profile 15″ Subwoofer for Cinema Installation Applications
Features
- Compact direct radiating subwoofer for cinema installation applications
- 800 Watts continuous, 3,200 Watts peak power
- 15″ driver for extended low frequency response to below 35 Hz
- Low distortion dual port design for maximum sound pressure levels
- Low profile design allows subwoofer to be mounted behind a cinema screen
- Ideal for low frequency effects and sub bass music reinforcement in cinemas
- Internally braced plywood enclosure
- Finished with a hard wearing semi matt black paint finish
- Neutrik speakON* NL4 and barrier strip connectors for input and link output
- Designed and engineered in the U.K.
Specification
System
| Frequency response | 45 Hz – 250 Hz ±3 dB 36 Hz – 300 Hz -10 dB |
| Nominal dispersion | Half space |
| Power handling (IEC) | 800 W continuous, 3,200 W peak |
| Sensitivity | 97 dB (1 W @ 1 m) |
| Maximum SPL | 126 dB continuous, 132 dB peak |
| Impedance | 8 Ω |
| Components | 1 x 15″ (387 mm) LF driver |
Enclosure
| Connectors | 1 x Neutrik speakON* NL4, 1 x barrier strip terminals |
| Wiring | Pins 1+ / 1- input, pins 2+ / 2- link |
| Dimensions H x W x D | 950 x 731 x 300 mm (37.4 x 28.8 x 11.8″) |
| Net weight | 40.6 kg (89.3 lbs) |
| Construction | 18 mm (¾ “) |
| Finish | Semi matt black paint |
