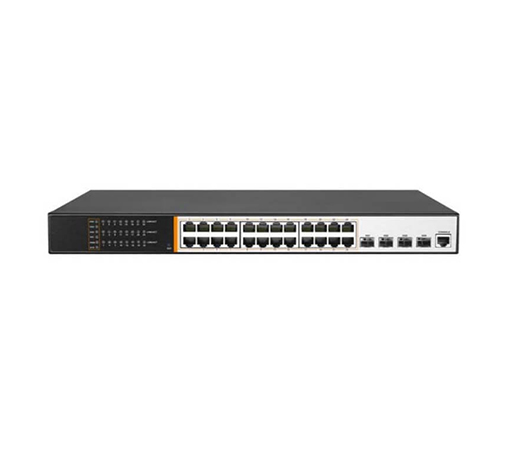

POE Switch 8 Port ยี่ห้อ Hi – View รุ่น DF5700-24G-4TF
- Smart PoE Switch 24port (Layer 3)
- 24 port 10 Gigabit managed network switch ( Layer 3)
- 24 Full Gigabit Managed Switch L3 OSI +
- 1/10 Gbps *4 (SFP/SFP+) port auto MDI/MDIX
- Store and forward exchange mechanism
- RIP V1/V2 16K mac address
- Support IEEE802.1x flow control
- IPV6 ,bandwidth 36 Gbps , ACL
- Qos , multicast
- Spanning tree
- Support WEB management (HTTP)
- anti-attack 4Kv lightning protection
Hardware Specifications
| Network standard | IEEE 802.3:Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX fast Ethernet IEEE 802.3ab:1000BASE-T gigabit Ethernet IEEE 802.3z:1000BASE-X gigabit Ethernet(fiber) IEEE 802.3ae:10GBASE-SR/LR 10G Ethernet(fiber) IEEE 802.3ad: comply link aggregation standard IEEE 802.3x:flow control IEEE 802.1p: About the traffic priority of the second layer of Qos / Cos protocol (multicast filtering) IEEE 802.1q:VLAN Bridge operation IEEE 802.1d:STP spanning tree IEEE 802.1s:MSTP spanning tree IEEE 802.1w:RSTP spanning tree IEEE 802.3af IEEE 802.3at |
| Port | 24x 10/100/1000Mbps RJ45 port 4x 10Gigabit SFP fiber port 1 Console port |
| PoE | 24 10/100/1000Mbps RJ45 port support PoE Max 400W Single port max 30W |
| LEDs | 28 Link/Act LEDs 24 POE LEDs 1 Power LEDs |
| Performance | Forwarding mode: store and forward Switch Volume (Full-duplex): 128Gbps Packet forwarding rate: 95.232Mpps 8K MAC address table |
| Input | 100-240V/50-60Hz |
| Dimension (L*W*H) | 440mm*320mm*44mm |
Software Specifications
| Shortcut function | One key VLAN One key CCTV(1-8 port 250meters PoE distance) One key Q0S (Video priority) One key AI power supply |
| Routing | Support RIP V1/V2 dynamic routing Support static routing |
| DHCP | Support DHCP server Support DHCP reply Support DHCP Snooping |
| VLAN | Support 4K VLAN Support 802.1Q VLAN, Port VLAN, Voice VLAN |
| PoE | Support setting the PoE port priority Support setting PoE power supply period Support setting port power |
| MAC address table | Comply the IEEE 802.1d standard Support MAC address learning and aging automatically Support static, dynamic, filter address table |
| Safety | Based on user rating management and password protection Support based on the port number, IP address, MAC address restrictions on user access Icmp-echo; DoS protection Support DHCP Snooping; DHCP attack protection Support port security, port isolation |
| Access control (ACL) | Support L2(Layer 2)~L4(Layer 4) packet filtering function Support port mirroring, port redirection, flow rate limit, QoS re-marking |
| Multicast | Support IGMP v1/v2 SnoopingSupport static multicast Support multicast VLAN |
| QoS | Support 8 port queue Support port priority, 802.1p priority, DSCP priority Support SP, RR,WRR,WFQ Priority scheduling algorithm |
| Spanning Tree | Support STP(IEEE 802.1d),RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol Support loop protection, BPDU protection |
| Management and maintenance | Support WEB management (HTTPJ) Support CLI (Telnet, local serial port) Support SNMP V1/V2/V3,Compatible with public MIBS Support LLDP,RMON Support IP Source protection,DoS protectionSupport CPU monitor,memory monitoring Support system log Support cable testing |
| Multicast | Support IGMP v1/v2 Snooping Support static multicast Support Multicast VLAN |
