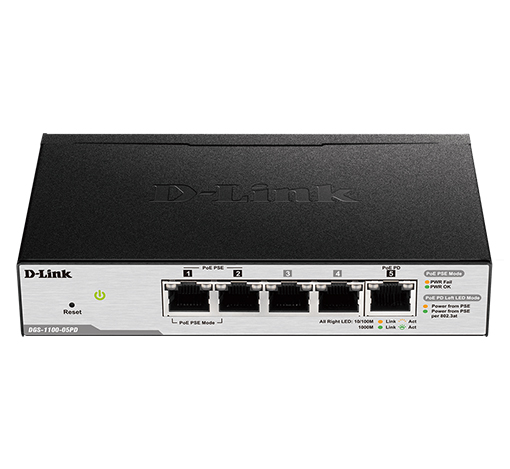

POE Switch 5 Port ยี่ห้อ D – Link รุ่น DGS-1100-05PD/U
- 2 x 10/100/1000BASE-T PoE ports
- 3 x 10/100/1000BASE-T PoE ports
- Powered by IEEE 802.3af/at Power of Ethernet through port 1
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
|
Specifications
|
|
|
Port-based Bandwidth Control
|
Yes |
| Class of Service (CoS) | Yes |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Store-and-Forwarding | Yes |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| 1000Base-T Interface | 3 ( with 1 PD Port) |
| 1000Base-T PoE Interface | 2 |
| Auto MDI/MDIX | Yes |
| 10/100/1000BASE-T ports PoE ports | 2 |
| 10/100/1000BASE-T ports | 3 |
| CPU Speed | 62.5 MHz |
| DRAM Size | 48K Bytes |
| Flash Memory Size | 2 MB |
| Packet Buffer Size | 1 Mbits |
| FAN | Fanless |
| Jumbo Frame | 9216 bytes |
| Loopback Detection (LBD) | Yes |
| MAC Address Table Size | 2112 |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | 128 |
| Link Aggregation Group Per Device | 1 (static port trunk) |
| Max Port Per Link Aggregation Group | 4 (static port trunk) Only port 1-4 |
| Web-based GUI | Yes |
| SNMP | Yes |
| SNMP Trap | Yes |
| D-Link Discover Protocol (DDP) | Yes |
| DHCP/BootP Client | Yes |
| D-Link Network Assistant | Yes |
| Port Mirroring | Yes |
| Cable Diagnostics | Yes |
| Switch Capacity | 10 Gbps |
| Max. Packet Forwarding Rate | 7.44 Mpps |
| Maximum PoE Budget | 18W with 802.3at / 8W with 802.3af input power |
| PoE Budget | PoE Passthrough: 18 W with 802.3at input 8 W with 802.3af input |
| Rate Limiting | Yes |
| Power Input | 802.3af/at PoE input only |
| Number of Queue | 4 |
| Queue Handling | Yes |
| Strict Priority Queue (SPQ) | Yes |
| Weighted Round Robin (WRR) | Yes |
| Port Security | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| Traffic Segmentation | Yes |
| 802.1D Spanning Tree (STP) | Yes |
| 802.1w Rapid Spanning Tree (RSTP) | Yes |
| Surge/Lightning Protection (AC Power Inet) | 2kV |
| Surge/Lightning Protection (All Ethernet Ports) | 1Kv |
| 802.1Q VLAN | Yes |
| VLAN Groups | 32 |
| Port-based VLAN | Yes |
| Voice VLAN | Static Voice VLAN only |
| Surveillance VLAN | Yes |
| Asymmetric VLAN | Yes |
| Dimension | 150 × 97 × 28 mm |
| Weight | 0.38 kg |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | – 40 ~ 70 °C |
| Operation Humidity | 0% ~ 90% RH |
| Storage Humidity | 0% ~ 95% RH |
| Operating Altitude | 2000m |
| Maximum Power Consumption | 23.92 W (PoE on)<br> 2.32 W (PoE off) |
| Standby Power Consumption | 1.458 W |
| Maximum Heat Dissipation | N/A |
| Acoustic | 0 dB |
| MTBF | 2,346,941 hours |
| Warranty | Limited Lifetime |
