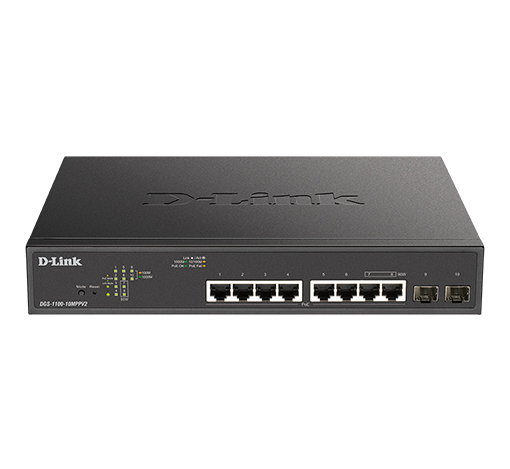

POE Switch 10 Port ยี่ห้อ D – Link รุ่น DGS-1100-10MPPV2
Miscellaneous
| MTBF | 392,650 hours |
| Compliant Standards | FCC Class A certified, UL, C-Tick, BSMI, cUL, CB, LVD, VCCI Class A, RoHS 10 |
Dimensions & Weight
| Width | 11 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 4.41 lbs |
Environmental Parameters
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 – 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 – 95% (non-condensing) |
General
| Device Type | Switch – 10 ports – smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 6 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x 10/100/1000 (PoE++) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 242 W |
| Performance | Switching capacity: 20 Gbps ¦ Forwarding rate: 14.88 Mpps |
| Capacity | Packet buffer size: 4.1 Mbit |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, RSTP, STP |
| Remote Management Protocol | SNMP 2, SNMP, HTTP, ICMP, RSTP |
| Encryption Algorithm | SSL |
| Features | Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, DDos attack prevention, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, D-Link Green Technology, LLDP support, Port Security, Energy Efficient Ethernet, Management Information Base (MIB), Strict Priority (SP), DiffServ Code Point (DSCP) support, Link Aggregation, Voice VLAN, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, Smart Fan, UDP support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt |
| Flash Memory | 16 MB |
Expansion / Connectivity
| Interfaces | 6 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T RJ-45 PoE++ – 90 W ¦ 2 x 1000Base-X SFP |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 – 60 Hz) |
| Power Consumption Operational | 291.8 Watt |
| Power Consumption Stand by | 8.1 Watt |
