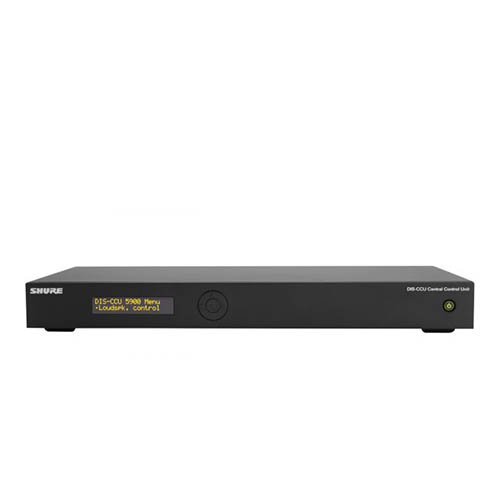

ชุดไมค์ประชุมระบบดิจิตอล ยี่ห้อ SHURE รุ่น DIS-CCUPS-CCU-EFL-6000-
Features
- Compatibility with either DDS 5900-series discussion units or DCS 6000-series conference units when Feature License FL6000 is installed
- Fully digital audio transmission with selectable scrambling to prevent eavesdropping
- Support for four microphone operation modes: Automatic, FIFO, Manual, and VOX (voice activated)
- Up to 8 simultaneous open microphones with Auto-Off
- Powers up to 60 discussion or conference units without the need for an additional power supply
- Control of up to 250 microphone units, 2 languages, and 32 interpreter units
- Control of up to 3,800 microphone units, 31 languages, and 200 interpreter units with optional Feature Licenses
- Two analog audio inputs for connection to external audio sources
- Eight analog audio outputs for connection to a videoconferencing system, audio/video recorder, sound reinforcement system, or wireless language distribution system
- DCS-LAN serial ‘daisy-chain’ topology using shielded CAT 5e (or higher) F/UTP or U/FTP cabling
- Web browser interface for control of microphones, request list, and system setup using a computer or tablet
- Separate web addresses for Administrator, Chairman, and Display functions
- Built-in seat table for assigning participant names and/or seat numbers to units
- Max. number of discussion units 250
- Number of discussion units powered by CU 5905 up to 60
- Analog Input 1 One 3-pin female XLR socket (electronically balanced)
- Nominal input level (Input 1) switchable:
• 0 dBm (0.775V RMS)
• -10 dBm (0.245V RMS) - Max. input level +15 dBm (4.5V RMS)
- Analog Input 2 (Audio In or Emergency input – EEM) One 3-pin female XLR socket(electronically balanced) withcontact closure
- Main voltage 100-240 V, 50-60 Hz nominal
- Max. consumption 175 W
- Efficiency 87%, typical
