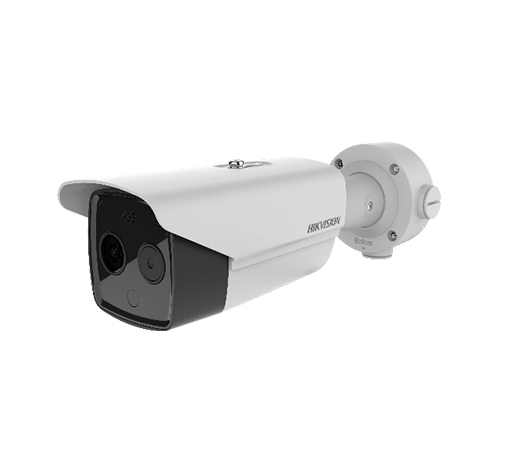

กล้องวงจรปิด IP Bullet ยี่ห้อ Hikvision รุ่น DS-2TB2617-6/QA

• High sensitivity thermal module with 160 x 120 resolution
• NETD is less than 40 mk (@25° C, F#=1.1)
• Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
• Support temperature screening
• Support audio alarm

Specification

• Thermal Module
  • Image SensorVOx Uncooled Focal Plane Arrays
  • Resolution160 × 120
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETDLess than 40 mK (@ 25 °C,F#=1.1)
  • Focal Length6.2 mm
  • IFOV2.74 mrad
  • ApertureF1.1
  • Field Of View25° × 18.7° (H × V)
  • Min. Focusing Distance0.6 m
• Optical Module
  • Image Sensor1/2.7″ Progressive Scan CMOS
  • Resolution2688 × 1520, 4 MP
  • Min. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
  • Field Of View39.42° × 22.14° (H × V)
  • Focal Length8 mm
  • Shutter Speed1s to 1/100,000s
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
  • Day & Night ModeIR cut filter with auto switch
  • WDR120 dB
• Smart Function
  • Temperature Range30 °C to 45 °C (86 °F to 113 °F)
  • Temperature Accuracy± 0.5 °C
