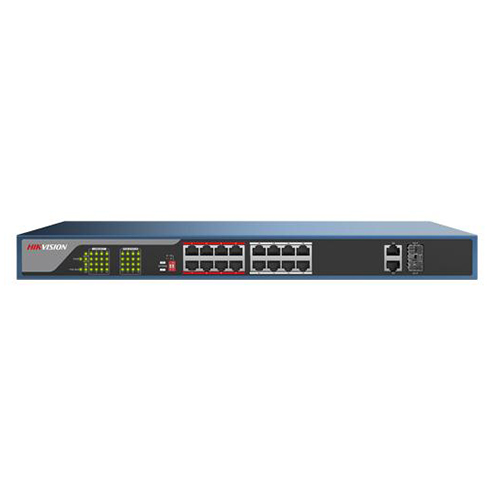

Network Switches ยี่ห้อ HIK-VISIONS รุ่น DS-3E0318P-E
- IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
- 16×10/100Mbps Auto-MDIX PoEports
- Provides up to 30 watts per PoE port
- PoE power budget 230W
- 4 KV surge protection for PoE ports
- IEEE 802.3x flow control support
- Plug-and-play installation
- 7.2 Gbps switching fabric
- 2.75 MbitsRAM Data Buffer
- 4K MAC address entries
- Sturdy metal enclosure
| Network Ports: | 18 | |
| PoE Port: | 16, 10/100Mbps RJ45 ports | |
| Uplink Port: | 2, 1000M Combo Port |
| Standard | ||
|---|---|---|
| Network Protocol: | IEEE802.3,802.3u,802.3x, 802.3af, 802.3at | |
| Performance | ||
|---|---|---|
| Switching Capacity: | 7.2Gbps | |
| Max. Forwarding Rate: | 5.36Mpps | |
| High Priority Ports: | Ports 1-8 | |
| Forwarding Mode: | Store-and-forward | |
| MAC Address Table: | 4k | |
| Flow Control: | IEEE802.3x full duplex | |
| Power Over Ethernet | ||
|---|---|---|
| PoE Standard: | IEEE802.3af, IEEE802.3at | |
| PoE Power Budget: | 230W | |
| Working Mode: | Extend On:250m,10M,CAT 5e Extend Off:100m |
|
| General | ||
|---|---|---|
| Power Supply: | 100-240V AC, 50/60Hz | |
| Power Consumption: | ≤250W | |
| Surge Protection: | 4KV | |
| Working Temperature: | Temperature: 0℃-40℃ | |
| Working Humidity: | Humidity: 10%-90% , non-condensing | |
| Storage Temperature: | Temperature: -40℃-70℃ | |
| Storage Humidity: | Humidity: 5%-90% , non-condensing | |
| Weight: | 3.72kg | |
| Dimension: | 440mm*285mm*43mm | |
