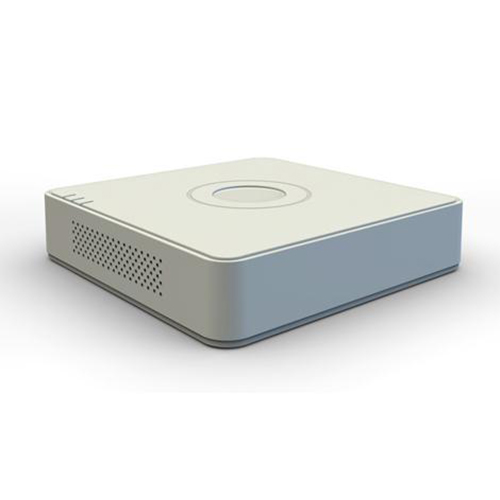

เครื่องบันทึก DVR  4CH ยี่ห้อ Hik-Vision รุ่น DS-7104HGHI-E1

• Video inputs   4 BNC Channels
• Video outputs   1 HDMI Full HD, 1 VGA
• Audio inputs  1 Channel RCA
• Audio outputs   1 Channel RCA
• Bidirectional audio  Reusing the audio input/output
• Video / audio compression   H.264 / G.711
• Display resolution   1920×1080, 1280×1024, 1280×720, 1024×768
• Recording resolution   960×576(WD1), 704×576(D1), 704×288(2CIF), 352×288(CIF) and 176×144(QCIF)
• Main Stream recording  Channel 1~4: WD1/D1/2CIF/CIF/QCIF (1~25 FPS)
• Extra Stream recording  Channel 1~4: CIF / QCIF (1~25 fps)
• Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
• Alarms  Not available
• Recording method   Manual, programmed, motion detection
• Backup USB (Memory, HDD, CD-RW, DVR-RW) / Network
• Internal memory   1 SATA HDD 3.5″ of up to 6 TB (not included)
• Communication USB (Mouse and backup) / RJ45 (Ethernet)
• Remote access  Web browser, Smartphone App IVMS4500 and PC Software IVMS4200
• Power   DC 12 V / 1.5 A
• Dimensions / Weight  45 (H) x 200 (W) x 200 (D) mm / 0.8 Kg
