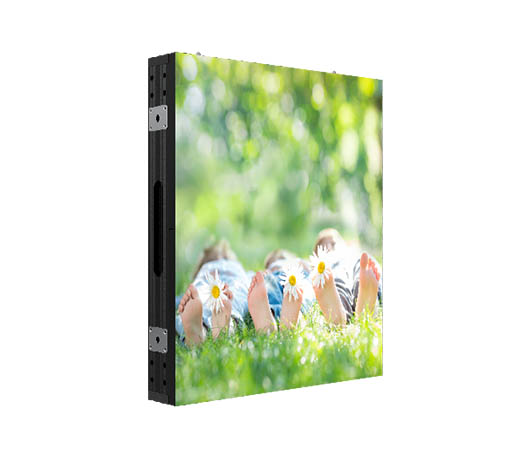

DS-D4239FO-BGF

LED DISPLAY  ยี่ห้อ HIKVISION รุ่น DS-D4239FO-BGF

• Widely applied in outdoor permanent advertising scenes
• Thin and light cabinet with the die-casting aluminum design
• IP 65 rating for both the front and back panels
• Free of air conditioners with multiple ventilation modes working together inside the cabinets
• front maintenance
• Standing, wall mount, and lifting
• Customizable as stadium LED screens

Specification

Key Material

• Lamp Encapsulation : Nationstar 1921
• Control System : DS-D42C04-N

Display

• White Balance Brightness : 5500 cd/m²
• Color Temperature : 2000 K to 9300 K adjustable
• Viewing Angle : Horizontal 140°, vertical 140°
• Contrast Ratio : ≥ 5000:1
• Color Uniformity : ≤ ± 0.003Cx，Cy
• Brightness Uniformity : ≥ 97％

Processing Performance

• Driving Method : Constant current driving
• Frame Frequency : 60 Hz
• Refresh Rate : 3840 Hz
• Grey Level : 16 bit
• Display Color : 281 trillion

Power

• Power Supply : 110~220 VAC ± 15%
• Max. Consumption : ≤ 750 W/m²
• Average Consumption : ≤250 W/m²

Working Environment

• Working Temperature : -10-55 ℃
• Working Humidity : 10%~80%RH
• Storage Humidity : 10%~85%RH
• Storage Temperature : -20~60 ℃

General

• Gross Weight : 100 Kg (220 lb) /8 in 1
• Package Dimension (W × H × D) : 1260 mm × 610 mm × 750 mm (49.6″ × 24.0″ ×29.53″)
• Lifespan : Lamp 100,000 hours
