DS-D44A0FO

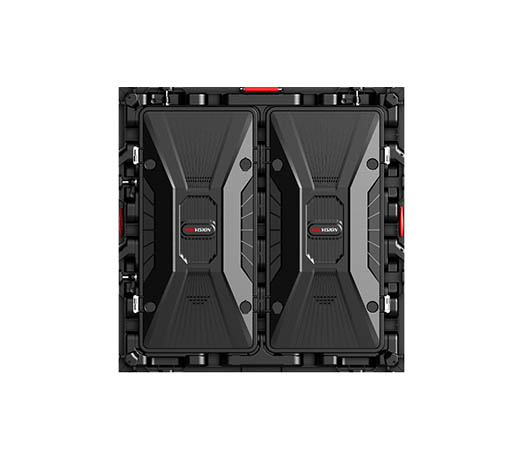

LED DISPLAY  ยี่ห้อ HIKVISION รุ่น DS-D44A0FO

 Specification

Cabinet

• Pixel ConfigurationSMD Triad LED
• Pixel Pitch CategoryP10
• Pixel Pitch10 mm
• Modules Component3 × 6
• Dimensions (W × H × D)960 mm × 960 mm × 102.5 mm (37.8″ × 37.8″ × 4.0″)
• Resolution96 × 96
• Area0.9216 m²
• Weight29 Kg (63.9 lb)
• Pixel Density10000 dots/m²
• Lamp Board HousingWith housing
• Cabinet MaterialMagnalium
• Maintenance MethodBack maintenance
• Cabinet Flatness0.2 mm
• Protection LevelIP65 both front and back

Display

• White Balance Brightness6000 cd/m²
• Color Temperature2000 K to 9300 K adjustable
• Viewing AngleHorizontal 140°, vertical 140°
• Contrast Ratio≥ 5000:1
• Color Uniformity≤ ± 0.003Cx，Cy
• Brightness Uniformity≥ 97％

Processing Performance

• Driving MethodConstant current driving
• Frame Frequency60 Hz
• Refresh RateUp to 3840 Hz
• Grey LevelUp to 16 bit
• Display Color281 trillion

Power

• Power Supply110~220 VAC ± 15%
• Max. Consumption≤ 780 W/m²
• Average Consumption≤ 260 W/m²

Working Environment

• Working Temperature-10-55 ℃
• Working Humidity10%~80%RH
• Storage Humidity10%~85%RH
• Storage Temperature-20~60 ℃

General

• Gross Weight145 Kg (320 lb) /4 in 1
• Package Dimension (W × H × D)1030 mm × 680 mm × 1150 mm (40.6″ × 26.8″ ×45.3″)
• LifespanLamp 100,000 hours
