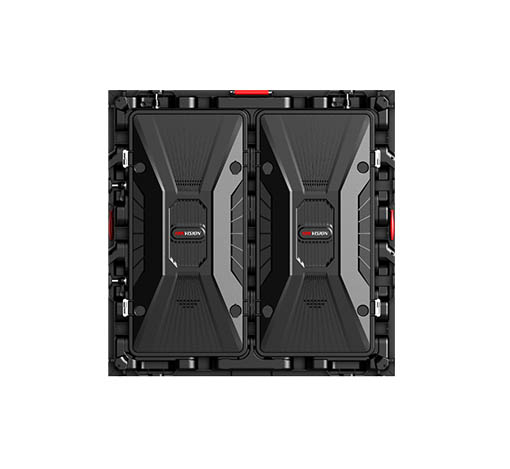

LED DISPLAY ยี่ห้อ HIKVISION รุ่น DS-D44A6FO-D
- Widely applied in outdoor permanent advertising scenes
- Thin and light cabinet with the die-casting aluminum design
- IP 65 rating for both the front and back panels
- Free of air conditioners with multiple ventilation modes working together inside the cabinets
- Rear maintenance available and front maintenance customizable
- Standing, wall mount, and lifting available for installation
- Customizable as stadium LED screens
Specification
Key Material
- Lamp Encapsulation : Xindeco DIP346
- Control System : DS-D42C04-H、DS-D42C08-H
Display
- White Balance Brightness : 7500 cd/m²
- Color Temperature : 2000 K to 9300 K adjustable
- Viewing Angle : Horizontal 110°, vertical 50°
- Contrast Ratio : ≥ 5000:1
- Color Uniformity : ≤ ± 0.003Cx，Cy
- Brightness Uniformity : ≥ 97％
Processing Performance
- Driving Method : Constant current driving
- Frame Frequency : 60 Hz
- Refresh Rate : Up to 3840 Hz
- Grey Level : Up to 16 bit
- Display Color : 281 trillion
Power
- Power Supply : 110~220 VAC ± 15%
- Max. Consumption : ≤ 500 W/m²
- Average Consumption : ≤ 165 W/m²
Working Environment
- Working Temperature : -10-55 ℃
- Working Humidity : 10%~80%RH
- Storage Humidity : 10%~85%RH
- Storage Temperature : -20~60 ℃
