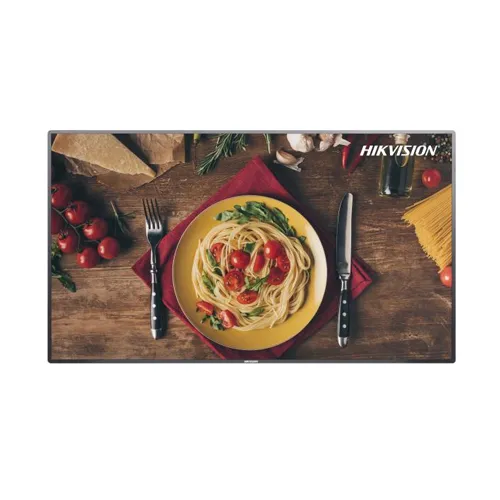

DS-D6055UN-B

Plastic shell appearance, slim frame, and all-in-one design.
Exquisite image, industrial A+ panel, auto-coloring and image-enhancing engine.
Variable materials, static and dynamic materials, including the pictures, audio, video, scrolling subtitle, PDF, webpages, live video, number calling, pop-up pictures, etc.
Flexible program schedule, free schedules and district play of multiple materials and variable play modes: play by day, play by week, play by loop, custom play, etc.
Centralized management, remotely control and manage one screen or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview, remotely release programs and updates local (USB) programs.
Organization permission, 5-level organization is available for managing materials, programs, terminals, and users, and support creating custom users, allocating permission for users according to user level, and permission templates.
Multiple security safeguards, 3-level check of materials, programs and schedules to prevent mistake release, encryption of data in storage and transmission to prevent data tampering, and with no default password, users can activate and set initial password to guarantee the password safety.

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

Digital sinage ยี่ห้อ Hikvision รุ่น DS-D6055UN-B

Display

Screen Size55 inch
Resolution3840 × 2160
Active Display Area1209.6 (H) mm × 680.4 (V) mm
Pixel Pitch0.315 (H) mm × 0.315 (V) mm
BacklightD-LED
Viewing Angle178° (H) /178° (V)
Brightness500 cd/m²
Contrast Ratio4000:1
Color Depth10 bit, 1.07B
Response Time8 ms
Color Gamut72% NTSC
Reliability7 × 24 h
Refresh Rate60 Hz

Built-in System

Operation SystemAndroid 8.1
ProcessorCortex-A17, 4-core, main frequency 1.6 GHz
Memory2 GB
Built-in Storage16 GB EMMC

Interface

Video & Audio InputAUDIO IN × 1, HDMI × 2, VGA × 1
Video & Audio OutputAUDIO OUT × 1, speaker (8 Ω 5 W) × 2
Network InterfaceLAN × 1，Wi-Fi × 1
Data Transmission InterfaceUSB 2.0 × 2, TF Card × 1, BT 4.0 × 1

Power

Standby Consumption≤ 0.5 W
Input Voltage100 to 240 VAC, 50/60 Hz
Power Consumption≤ 200 W

Working Environment

Working Temperature0 °C to 40 °C (32 °F to 104 °F)
Working Humidity10% to 80% RH
Storage Temperature-20 °C to 60 °C (-4 °F to 104 °F)
Storage Humidity5% to 90% RH

General

Material TypeDAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG
Mounting TypeWall mounting (horizontally or vertically)
Product Dimensions (W × H × D)
1237.2 mm × 708 mm × 83.44 mm (without wall-mounted backboard) (48.71” × 27.87” × 3.29”)

1237.2 mm × 708 mm × 102.44 mm (with wall-mounted backboard) (48.71” × 27.87” × 4.03”)
Package Dimensions (W × H × D)1403 mm × 856 mm × 217 mm (55.24” × 33.70” × 8.54”)
Net Weight19.2 kg (42.33 lb.)
Gross Weight24.53 kg (54.08 lb.)
Packing ListDigital signage × 1, power cord × 1, remote control × 1, wall-mounted backboard × 1, package of mounting bolts × 1, wall-mounted screw × 4, desiccative × 1, quick start guide × 1
