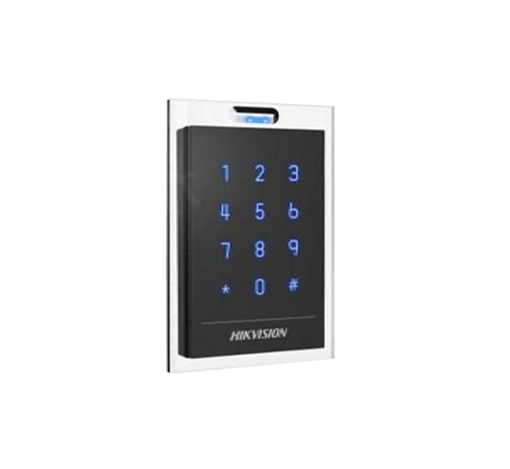

Series Card Reader ยี่ห้อ Hikvision รุ่น DS-K1101MK
- PC+ABS material shell with PMMA panel design
- Equipped with the 32-bit high-speed processor
- Built-in audible beeper
- Display the reader status with LED indicator
- DIP switch
- RS485 and Wiegand(W26/W34) protocol
- Tamper-proof alarm
- Online upgrade function(under the 485 communication mode), and card reader can degrade to
pre-upgrade status in case of upgrading failed - Watchdog design for repairing itself in case that exception occurs, to ensure the long service life
of the reader - Dust-proof and water-proof design
- Read Mifare card and obtain the card No
| SYSTEM PARAMETERS | ||
|---|---|---|
| Card Reading Frequency: | 13.56MHz | |
| Card Reading Distance: | 30 to 50mm (1.18 to 1.96″) | |
| ID Settings: | Setting by the DIP Switch on the Main Board | |
| Processor: | 32-bit | |
| GENERAL | ||
|---|---|---|
| Working Current: | ≤500mA | |
| Key Board: | No Keypad ( DS-K1101M ) Keypad with 12 Keys (0 to 9, *, #) ( DS-K1101MK) |
|
| Audio Alert: | Beeper | |
| Power Supply: | 12VDC | |
| Power Consumption: | ≤2W | |
| LED Indicator: | Power Indicator; Status LED Indicator | |
| Protection Level: | IP 64 | |
| Installation: | Applied for 120 Gang Box Only | |
| Certification: | CE, FCC | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -20°C to +65°C (-4°F to +149°F) | |
| Dimensions (L×W×H): | 132.0mm × 92.3mm × 20.5mm (5.20” × 3.63” × 0.81″) | |
| Weight: | ≤ 0.14Kg | |
