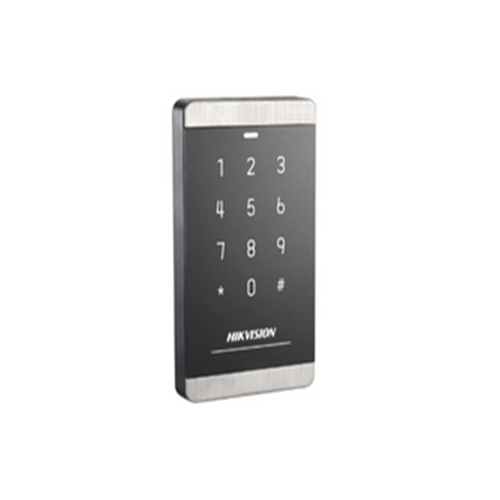

Reader ยี่ห้อ HIKVISION รุ่น DS-K1103MK
- PC+ABS material shell with PMMA panel design and alloy decoration
- Equipped with the 32-bit high-speed processor
- Display the reader status with an LED indicator
- RS485 and Wiegand (W26/W34) protocol
- Tamper-proof alarm
- Dust-proof and water-proof design
| System Parameters | ||
|---|---|---|
| Card Reading Distance: | ≤50mm (≤1.97″) | |
| ID Settings: | Setting by the DIP Switch on the Main Board | |
| Card Reading Frequency: | 13.56MHz | |
| Processor: | 32-bit | |
| General | ||
|---|---|---|
| Working Current: | ≤500mA | |
| Key Board: | No Keypad (DS-K1103M) Keypad with 12 Keys (0 to 9, *, #) (DS-K1103M K) |
|
| Audio Alert: | Beeper | |
| Power Supply: | 12VDC | |
| Power Consumption: | ≤2W | |
| LED Indicator: | Power Indicator; Status LED Indicator | |
| Installation: | Applied for 120 Gang Box Only | |
| Protection Level: | IP 64 | |
| Certification: | CE, FCC | |
| Working Temperature : | -20°C to +65°C (-4°F to +149°F) | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Dimensions (L×W×H): | 129mm × 76mm × 14.7mm (5.08” × 2.99” × 0.58″) | |
| Weight: | ≤ 0.15Kg | |
