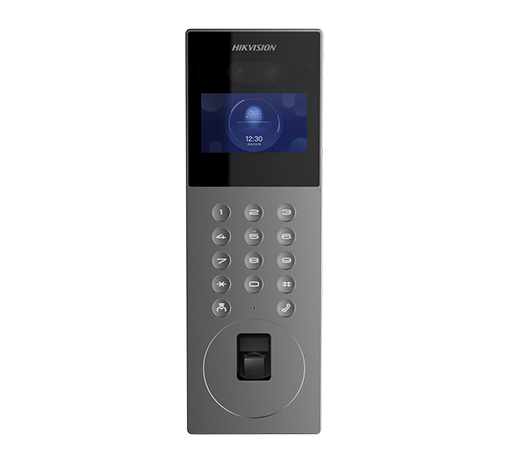

Facial Door Station ยี่ห้อ Hikvision รุ่น DS-KD9203-FE6
- 4.3-inch colorful LCD screen with 800 × 480 resolution
- 2 × 2 MP wide-angle HD lens
- IP65 protection level
- Built-in M1 card reading module
- Multiple interfaces: RJ45, RS-485, alarm input, relay, Wiegand
- Convenient configuration via Web remotely
- Convenient unlock methods: face, cards, PIN code and fingerprints
Specification
| System Parameters | |
| Operating System | Embedded Linux operation system |
| ROM | 1 GB |
| RAM | 4 GB |
| CPU | Embedded MCU Processor |
| Display Parameters | |
| Screen Size | 4.3-inch |
| Operation Method | Physical button |
| Type | Colorful LCD |
| Resolution | 800 × 480 |
| Video Parameters | |
| Lens | 2 × 2 MP HD camera |
| Resolution | Main stream: 1080p@30fps,720p@30fpsSub stream: VGA@25fps, VGA@30fps |
| FOV | / |
| WDR | Support |
| Supplement Light | Low illumination, IR supplement lights |
| Video Compression Standard | H.264 |
| Audio Parameters | |
| Audio Compression Standard | G.711 U, G.711 A |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| User Capacity | 5000 |
| Face Capacity | 5000 |
| Card Capacity | 200 |
| Linked Network Camera Capacity | 500 |
| Network Parameters | |
| Communication Protocol | TCP/IP, RTSP |
| Wired Network | Support |
| Wi-Fi Standard | / |
| Bluetooth Version | / |
| 3G/4G Standard | / |
| Device Interfaces | |
| Alarm Input | 4 |
| Network Interface | 1 10/100/1000 Mbps self-adaptive Ethernet |
| TAMPER | 1 |
| Exit Button | 1 |
| RS-485 | 2 |
| USB | 0 |
| Wiegand | / |
| TF Card | / |
| Alarm Output | / |
| Lock Control | 1 |
| Door Contact Input | 1 |
| Power Interface | 1 |
| Performances | |
| Multi-Factor Authentication | 10000 |
| General | |
| Button | Physical buttons |
| Installation | Flush mounting |
| Indicator | / |
| Protective Level | IP65 |
| Working Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Working Humidity | 10% to 90% |
| Dimensions and Weight | 373 mm × 124 mm × 43.7 mm (14.69″ × 4.88″ × 1.72″)
Without package: 1.05 kg With package: 2.166 kg |
| Battery | / |
| Power Supply | 12 VDC |
| Application Environment | Outdoor |
| Power Consumption | ≤ 13 W |
| Language | English, Traditional Chinese, Arabic, Portuguese (Brazil), Russian, Spanish, Turkish, Vietnamese |
