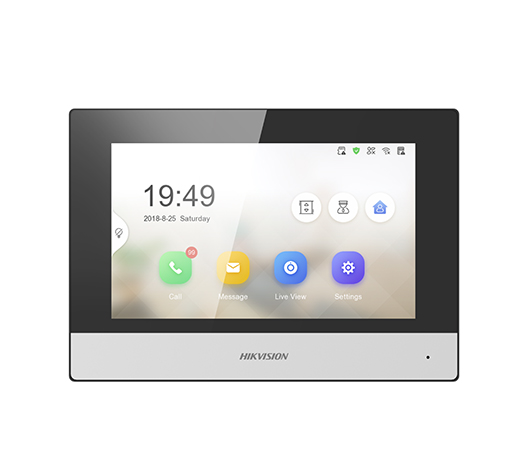

Series IP-Based Indoor Station ยี่ห้อ HIKVISION รุ่น DS-KH6320-WTE1

• New UI V2.0: User friendly design
• 7-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Stores messages and capture pictures in the TF card
• Remote unlocking via the client software or the mobile client
• Views live videos of door stations and linked cameras

Specification

System Parameters

• Operating System : Embedded Linux operation system
• ROM : 32 MB
• RAM : 128 MB
• CPU : Embedded processor

Display Parameters

• Screen Size : 7-inch colorful TFT screen
• Operation Method : Capacitive touch screen
• Type : Colorful TFT screen
• Resolution : 1024 × 600

Video Parameters

• Lens : /
• Resolution : /
• FOV : /
• WDR : /
• Video Compression Standard : DS-KH6320-WTE1
• Focal Length : /

Audio Parameters

• Audio Compression Standard : G.711 U
• Audio Input : Built-in omnidirectional microphone
• Audio Output : Built-in loudspeaker
• Audio Compression Bitrate : 64 Kbps
• Audio Quality : Noise suppression and echo cancellation
• Volume Adjustment : Adjustable

Capacity

• Event Capacity : 200
• Notice Capacity : 16
• Linked Indoor Extensions Capacity : 5
• Linked Doorphone Capacity : 8

Network Parameters

• Communication Protocol : TCP/IP, SIP, RTSP
• Wired Network : 10/100 Mbps self-adaptive
• Wi-Fi Standard : Wi-Fi 802.11 b/g/n
• Bluetooth Version : /
• 3G/4G Standard : /
• Zigbee : /
