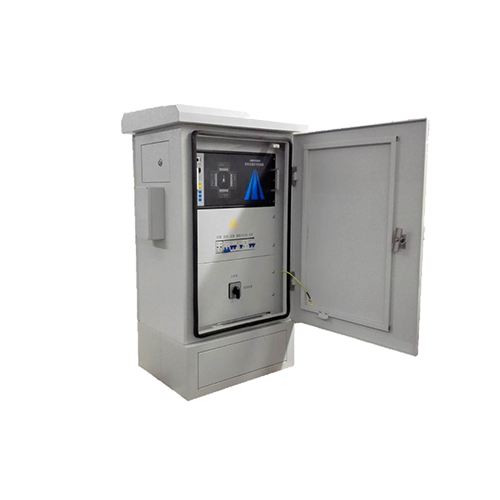

Traffic Accessories ยี่ห้อ HIKVISION รุ่น DS-TSC300-44H
- Using ARM9 series 32bit chip，which can provide strong calculate and communication ability
- Modular design method，easy to install and maintenance
- Using controllable silicon to control the signal light，keeping the device stable
- Using open, standard communication protocol, easy to extend
- Equipped with control and display panel, which can real-time monitor and manually adjust the signal status
- Auto monitor for the status of communication devices and light device, it will alert when problem happens and react automatically
- Equipped with independent yellow flash controller, not controlled by firmware，enhancing the security；
- GPS Timing（Optional）
| Signal Light Output | 44-chs independent control output， Signal Channel Consumption 800W |
| Vehicle Detect Panel | N/A |
| Light Control Panel | 4 |
| Cabinet | 1 |
| GPS Interface（Optional） | 1 GPS Satellite Signal Real-time Timing（Optional） |
| Network Interface | 1 100M Ethernet Interface |
| Other Interfaces | 2 RS-232; 2 RS-485; 1 USB |
| External Input | Support 8-chs Pedestrian Button Input |
| Wireless Control Interface | Support |
| Operating Voltage | AC220V±44V，50Hz±2Hz |
| Operating Ambient Temperature | -40℃～+70℃ |
| Operating Ambient Humidity | 45%~95%，non-condensing |
| Power Dissipation | <35W |
| Dielectric Strength | ＞100MΩ |
| Level of Protection | IP54 (Cabinet) |
| Dimensions | Mainframe：482.5mm(W)×221mm(H)×290mm(L) Controller（Cabinet）：600mm(W)×1084mm(H)×450mm(L) |
