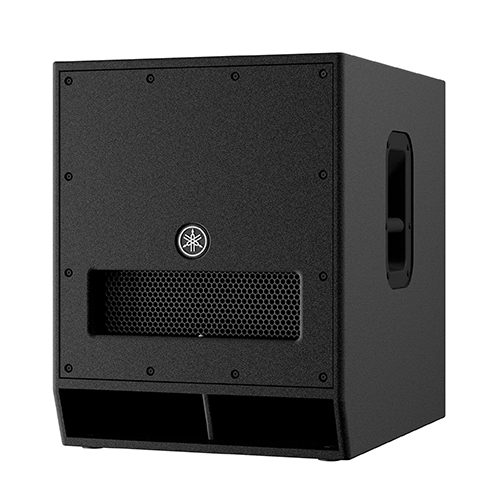

ตู้ลำโพง ยี่ห้อ YAMAHA รุ่น DXS15MkII
The new DXS15mkII capable of producing tight, thunderous low frequencies as low as 40Hz and a maximum SPL of 135dB, this updated model’s optimized band-pass design and state-of-the-art DSP ensure the extremely high power output is focused, powerful, and distortion-free.
- 15″ powered subwoofer with 1020W class-D power amplifier
- High-output 15″ woofer with a band-pass design cabinet for superior bass response and a maximum 135dB SPL
- 40Hz-150Hz frequency range is ideal for small- to medium-sized rooms
- Built-in D-XSUB processing allows you to extend the frequency response even lower
- Plywood cabinet is durable and acoustically optimized for maximum sound quality
- Cardioid mode for bass management onstage
- Selectable X-OVER (80/100/120 Hz)
- M20 and Ø35 mm dual pole sockets
- Optional Speaker Wheels (SPW-1) and Speaker Cover(SPCVR-DXS152)
Specifications
|
DXS18 |
DXS15mkII |
DXS12mkII |
||
|---|---|---|---|---|
| Speaker type | 18″ Powered subwoofer, Band-pass type | 15″ powered subwoofer, Band-pass type | 12″ powered subwoofer, Band-pass type | |
| Frequency range (-10dB) | 32Hz – 120Hz | 40 Hz – 150 Hz | 42 Hz – 150 Hz | |
| Components | LF | 18″ cone, Voice Coil:4″ | 15″ cone, 2.5″ voice coil | 12″ cone, 2.5″ voice coil |
| Maximum output level (1m; on axis) | 136dB SPL | 135 dB SPL | 134 dB SPL | |
| I/O connectors | INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST) | INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST) | INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT) | |
| Processors | D-XSUB: BOOST, XTD LF, NORMAL | D-XSUB: BOOST, XTD LF, NORMAL | D-XSUB: BOOST, XTD LF, NORMAL | |
| Cooling | Natural convection | Natural convection | Natural convection | |
| Power requirements | 100V – 240V, 50Hz/60Hz | 100V – 240V, 50Hz/60Hz | 100V – 240V, 50Hz/60Hz | |
| Power consumption | 100W | 100W | 100W | |
| Pole socket | 35 mm (depth 80 mm) & M20 (threaded depth 25 mm) | 35 mm (depth 80 mm) & M20 (threaded depth 25 mm) | 35 mm (depth 80 mm) & M20 (threaded depth 25 mm) | |
| Dimensions | W | 563mm (22.2″) | 480 mm (18.90”) | 400 mm (15.75″) |
| H | 683mm (26.8″) | 611 mm (24.06”) | 567 mm (22.32″) | |
| D | 721mm (28.4″) | 614 mm (24.17”) | 570 mm (22.44″) | |
| Net weight | 49.7kg (110lbs) | 36.0 kg (79.4lbs) | 30.0 kg (66.1lbs) | |
| Others | Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black | Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black | Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black | |
| วัตต์ | Dynamic:1020W / Continuous: 800W | Dynamic:1020W / Continuous: 800W | Dynamic:1020W / Continuous: 800W | |
