EAP653

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.^†
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.^‡

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

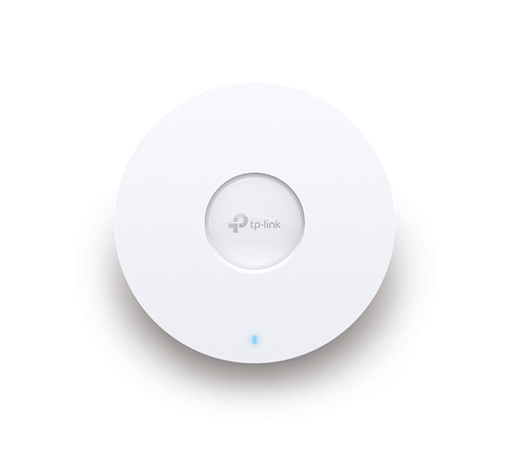

Access Point ยี่ห้อ TP-Link รุ่น EAP653

Wireless Standards : IEEE 802.11ax/ac/n/g/b/a
Signal Rate : Wireless AX3000
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 574 Mbps
Interface : Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Power Supply : 48V Passive PoE , 12V DC , 802.3at PoE (DC adapter is not included)
Mounting : Ceiling /Wall Mounting
Antenna Type : Internal Omni Antenna ( 2.4GHz: 2*4dBi , 5GHz: 2*5dBi )
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.^‡
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.^§
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.^§
Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.

Brand	TP-LINK
Model	EAP653
Standards	IEEE 802.11ax/ac/n/g/b/a
Antennas	Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Transmit/Receive	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP) • FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)
Frequency	2.4 GHz and 5 GHz
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)^‡ • Seamless Roaming ^§ • Omada Mesh^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Interface	1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button	Reset
Management	Omada App :Yes Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller Cloud Access : Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) Email Alerts : Yes LED ON/OFF Control : Yes Management MAC Access Control : Yes SNMP : v1, v2c, v3S ystem Logging Local/Remote Syslog : Local/Remote Syslog SSH :Yes Web-based Management ; HTTP/HTTPS L3 Management ; Yes Multi-site Management : Yes Management VLAN : Yes Zero-Touch Provisioning : Yes . Requiring the use of Omada Cloud-Based Controller.
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Mounting	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting
Power Supply	12V DC
Power Supply (PoE)	• 802.3at PoE • 12V DC (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC). Note: DC adapter is not included in the package, and is sold separately.
Power Consumption	• EU: 13.5 W • US: 14.7 W
Environment	• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Certification	CE, FCC, RoHS
Package Contents	• EAP653 • Ceiling/Wall Mounting Kits • Installation Guide
Dimension	(W x D x H) : 16.00 x 16.00 x 3.36 cm
Net Weight	0.00 KG
Package Dimension	(W x D x H) : 24.50 x 23.00 x 6.50 cm
Gross Weight	0.70 KG
Volume	3,662.75 cm³
