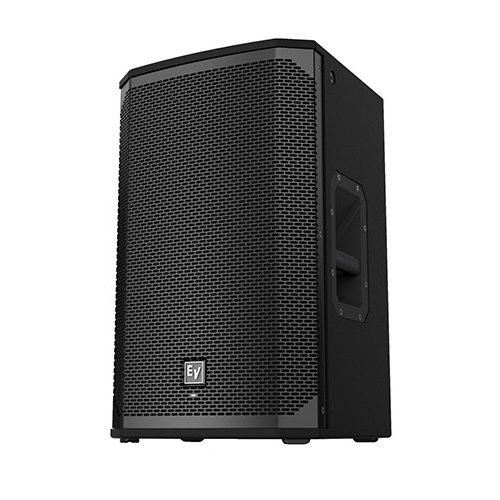

ตู้ลำโพง ยี่ห้อ Electro-Voice(EV) รุ่น EKX-12-AP

The EKX series is the newest member of the Electro Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight models (four powered and four passive), including 12″ and 15″ two-way models and 15″ and 18″ subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX

Features:

• EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
• EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
• Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
• 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Specifications

• Axial Sensitivity (SPL, 1 W @ 1 m)   :   95 dB
• Maximum SPL  :   131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
• Nominal Impedance:        8 Ω
• Power Handling (Continuous / Peak):       350 W/1400 W
• Frequency Response : (-3 dB)        82 Hz – 18 k Hz Full Space Measurement
• Frequency Response: (-10 dB)      55 Hz – 20 k Hz Full Space Measurement
• Recommended High-Pass Frequency      55 Hz
• Coverage (Nominal -6 dB) H         90 °
• LF Transducer    EVS-12M 300 mm (12 in)
• HF Transducer   DH-1M 1-inch titanium compression driver
• Crossover Frequency     1.6 k Hz
• Minimum Impedance    7.5 Ω
• Connector Type Dual NL4
• Enclosure Material           15 mm, plywood with EVCoat
• Grill        18 AWG steel with powdercoat
• Suspension         (8) M10 threaded mounting points
• Height   607 mm (23.9″)
• Width    375 mm (14.76″)
• Depth   356 mm (14.02″)
• Weight Net         17.4 kg (38.36 lbs)
• Shipping Weight               21.4 kg (47.18 lbs)
