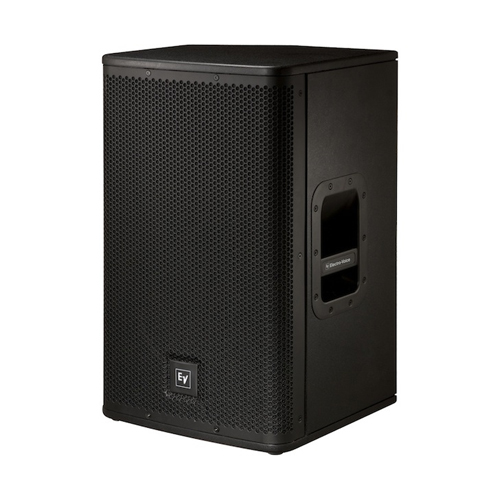

ตู้ลำโพง ยี่ห้อ Electro-Voice(EV) รุ่น ELX115

A powerful step up from the ELX112, the ELX115 features a 15” woofer that delivers extended low-frequency response for bigger sound in larger rooms.

15″ passive loudspeaker

• More power, fuller sound for larger rooms
• EVS-15K woofer
• 1.5-inch DH-1K titanium HF compression driver
• 50 Hz – 20 kHz frequency range
• 90° x 50° coverage-pattern waveguide
• 60° Monitor Angle
• 134 dB max SPL
• Power handling: 400 W continuous, 1600 W peak
• Braced 15mm plywood enclosure
• Pole mount or stack with Live X Subwoofers
• Black textured finish

SPECIFICATIONS

• Freq. Response (-3 dB): 75 Hz – 18 kHz¹
• Freq. Range (-10 dB):      50 Hz – 20 kHz¹
• Axial Sensitivity : 95 dB
• Max. Measured SPL³:L   134 dB
• Recommended HP Freq.:   40 Hz
• Coverage (Horiz. x Vert.):   90° x 50°
• Power Handling : 400W Continuous, 1600W Peak
• LF Transducer(s):     (1) EVS-15K, 381mm (15″) Woofer
• HF Transducer:  DH-1K, 39mm (1.5″) Titanium Diaphragm Compression Driver
• Crossover Frequency:    1.7 kHz
• Nominal Impedance:      8 Ohms
• Minimum Impedance:   7.4 Ohms
• Connectors:       Dual NL4
• Enclosure Material:     9-ply, 15mm Plywood, Internally Braced, with Texured Paint
• Grille:    18GA Steel with Black Powdercoat
• Dimensions (H x W x D) : 708mm x 432mm x 382mm (27.89″ x 17.02 x 15.05″),
• Net Weight:     21.9 kg (48.2 lbs)
• Shipping Weight:       26.6 kg (58.6 lbs)
