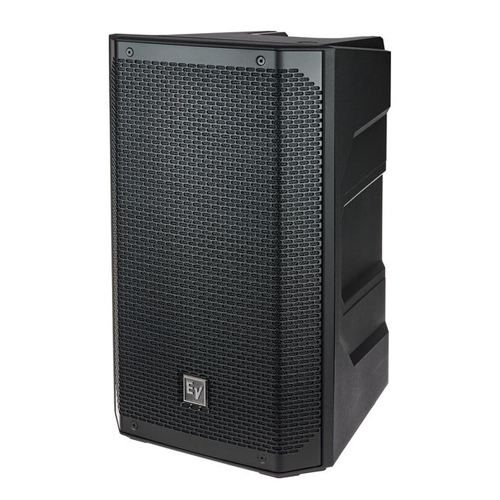

ตู้ลำโพง ยี่ห้อ Electro-Voice(EV) รุ่น ELX200-12
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole – the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.
EV’s industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness – both acoustically and physically; maximum efficiency with maximum toughness.
12″ passive loudspeaker
- 1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
- 1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
- High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
- Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.
SPECIFICATIONS
- Suspension: (3) M10 suspension points
- Minimum Impedance: 7.5Ω
- HF Transducer: DH-1L 1-inch titanium compression driver
- Speaker Type: Full-Range
- Woofer Size: 12inch
- Frequency Response (-3 dB)¹: 77 Hz – 17 kHz
- Frequency Range (-10 dB)¹: 51 Hz – 20 kHz
- Max. SPL/1m (calc)²: 128dB
- Coverage (Nominal -6 dB) H: 90°
- Coverage (Nominal -6 dB) V: 60°
- LF Transducer: EVS-12M 300 (12 in)
- Power Rating: 1200W
- Crossover Frequency: 1.7 kHz
- Connector Type : Dual NL4
- Enclosure Material: Polypropylene composite
- Grille: 18 AWG steel with powdercoat
- Available Color: Black or White
- Height: 24.76″ (629mm)
- Width: 14.29″ (363mm)
- Recommended High-Pass Frequency: 50 Hz
- Depth: 13.54″ (344mm)
- Weight Net: 33.51lbs (15.2kg)
- Shipping Weight: 37.7lbs (17.1kg)
- Family: ELX200
- Power Handling (Continuous / Peak): 300W/1200W
- Nominal Impedance: 8Ω
- Axial Sensitivity (SPL, 1 W @ 1 m): 93dB
