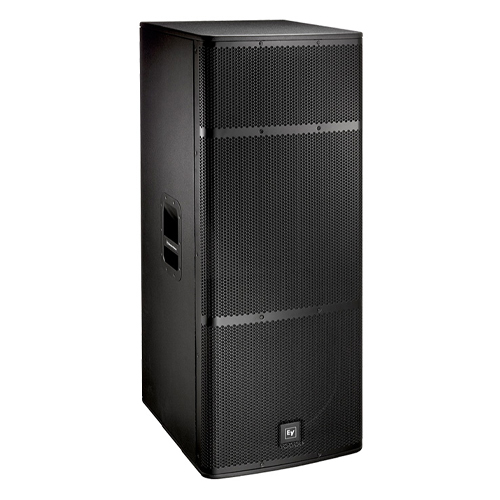

ตู้ลำโพง ยี่ห้อ Electro-Voice(EV) รุ่น ELX215
This twin woofer configuration delivers real low-end punch — ideal for applications that demand high volume output and an ultra-wide frequency response from a single cabinet.
Dual 15″ 2‑way passive full‑range loudspeaker
- High-volume punch and ultra-wide frequency response
- Ideal for mains
- Two EVS-15K woofers for extended LF
- 1.5-inch DH-1K titanium HF compression driver
- 38 Hz – 20 kHz frequency range
- 90° x 50° coverage-pattern waveguide
- 137 dB max SPL
- Power handling: 600 W continuous, 2400 W peak
- Braced 15mm plywood enclosure
- Black textured finish Dual 15-inch two-way full-range loudspeaker
SPECIFICATIONS
- Freq. Response (-3 dB): 62 Hz – 18 kHz¹
- Freq. Range (-10 dB): 38 Hz – 20 kHz¹
- Axial Sensitivity : 96 dB
- Max. Measured SPL³: 137 dB
- Recommended HP Freq.: 35 Hz
- Coverage (Horiz. x Vert.): 90° x 50°
- Power Handling: 600W Continuous, 2400W Peak
- LF Transducer(s): (2) EVS-15K, 381mm (15″) Woofers
- HF Transducer: DH-1K, 39mm (1.5″) Titanium Diaphragm Compression Driver
- Crossover Frequency: 1.7 kHz
- Nominal Impedance: 4 Ohms
- Minimum Impedance: 3.7 Ohms
- Connectors: Dual NL4
- Enclosure Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
- Grille: 18GA Steel with Black Powdercoat
- Dimensions (H x W x D): 1154mm x 432mm x 501mm (45.44″ x 17.02″ x 19.73″)
- Net Weight: 40.7 kg (89.6 lbs)
- Shipping Weight: 48.4 kg (106.6 lbs)
