ES915SC24

Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
Low-profile element provides uniform cardioid polar pattern with 120º acceptance angle
Plugs into any standard XLRF-type connector, or direct mounts to 5/8″-27 stands using included thread-mount adapter.

SAFEANDSOUND ตัวแทนจำหน่าย ผลิตภัณฑ์ กล้องวงจรปิด เครื่องเสียง ชุดประชุม และบริการติดตั้ง สนใจผลิตภัณฑ์ กล้องวงจรปิด ภาพคมชัด สีสวย หรือ เครื่องเสียง ชุดประชุม คุณภาพดี และบริการติดตั้งอีกทั้งบริการหลังขาย ปรึกษาฟรี!! หรือ นัดสำรวจหน้างานฟรี พร้อมทำใบเสนอราคา โทรเลย 089-8415456 หรือ 095-4466266 24ชั่วโมง

0 People watching this product now!

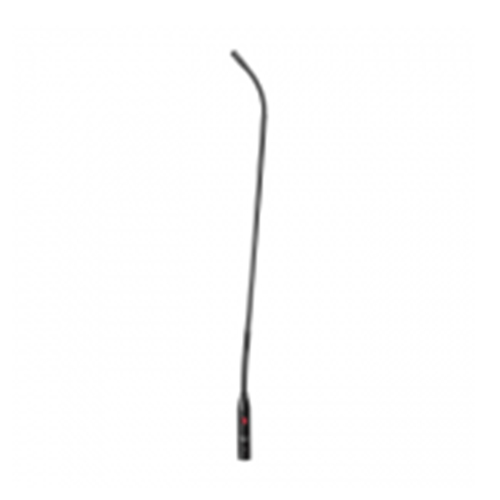

Cardioid Condenser Gooseneck Microphone with Mute Switch/LED (24″ long) ยี่ห้อ Audio-Technica รุ่น ES915SC24

The new Engineered Sound®. Contractor-exclusive innovations for every acoustical challenge. And safe haven from RFI.

Equipped with Audio-Technica’s legendary electro-acoustic design innovations, the ES915SC24 is a wide-range miniature condenser microphone, 24″ long, with a cardioid polar pattern and a mute switch/LED. This small-diameter gooseneck microphone provides highly flexible positioning while maintaining a well-contoured appearance. The microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard® innovations. The ES915SC24 also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. A mute switch in the base lights when the mic is “on.” The microphone’s low-profile element provides a uniform cardioid polar pattern with 120º acceptance angle. The microphone can be mounted on a podium or desktop with the included AT8474 low-profile isolation mount, which attenuates noise, shock and vibration transmitted through the mounting surface.

Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
Low-profile element provides uniform cardioid polar pattern with 120º acceptance angle
Plugs into any standard XLRF-type connector, or direct mounts to 5/8″-27 stands using included thread-mount adapter
Included low-profile isolation mount attenuates noise, shock and vibration
Available interchangeable elements permit angle of acceptance from 90º to 360º
Small-diameter, alternating gooseneck design permits highly flexible positioning
Superior off-axis rejection for maximum gain before feedback
Requires 11V to 52V DC phantom power
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Specifications

ELEMENT	Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN	Cardioid
FREQUENCY RESPONSE	30-20,000 Hz
LOW FREQUENCY ROLL-OFF	80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY	-40 dB (10.0 mV) re 1V at 1 Pa
IMPEDANCE	250 ohms
MAXIMUM INPUT SOUND LEVEL	138 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)	109 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO	65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS	11-52V DC, 4 mA typical
SWITCHES	Flat, roll-off; mute/on
WEIGHT	145 g (5.1 oz)
DIMENSIONS	609.6 mm (24.00”) long, 8.4 mm (0.33″) head diameter, 18.9 mm (0.74″) base diameter
OUTPUT CONNECTOR	Integral 3-pin XLRM-type
OPTIONAL INTERCHANGEABLE ELEMENTS	ESE-O omnidirectional (360°) ESE-H hypercardioid (100°) ESE-ML MicroLine® (90°)
ACCESSORIES FURNISHED	AT8109 two-stage foam windscreen; AT8474 universal isolation mount; AT8473 quick-mount stand adapter; 5/8”-27 to 3/8”-16 threaded adapter
AUDIO-TECHNICA CASE STYLE	M26
