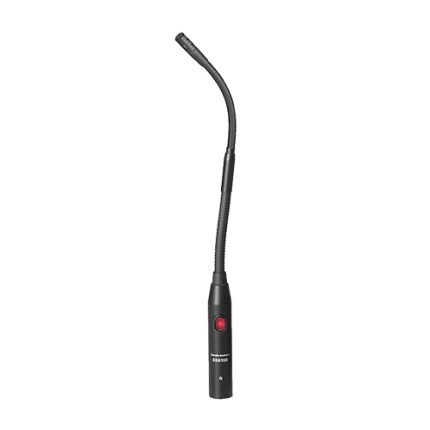

Mic with Power Module ยี่ห้อ Audio-Technica รุ่น ES935H6
- Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
- Low-profile element provides uniform hypercardioid polar pattern with 100º acceptance angle
- Unobtrusive design with an overall length of only 7.77″ (197.3 mm)
- Plugs into any standard XLRF-type connector, or direct mounts to 5/8″-27 stands using included thread-mount adapter
- Included shock mount attenuates noise, shock and vibration transmitted through the mounting surface
- Available interchangeable elements permit angle of acceptance from 90º to 360º
- Small-diameter gooseneck permits highly flexible positioning while maintaining smooth, contoured appearance
- Superior off-axis rejection for maximum gain before feedback
- Requires 11V to 52V DC phantom power
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- RoHS compliant—free from all substances specified in the EU directive on hazardous substances
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Hypercardioid |
| FREQUENCY RESPONSE | 80-20,000 Hz |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 18 dB/octave |
| OPEN CIRCUIT SENSITIVITY | -40 dB (10.0 mV) re 1V at 1 Pa |
| IMPEDANCE | 250 ohms |
| MAXIMUM INPUT SOUND LEVEL | 138 dB SPL, 1 kHz at 1% T.H.D. |
| DYNAMIC RANGE (typical) | 109 dB, 1 kHz at Max SPL |
| SIGNAL-TO-NOISE RATIO | 65 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 11-52V DC, 4 mA typical |
| SWITCH | Flat, roll-off |
| WEIGHT | 104 g (3.7 oz) |
| DIMENSIONS | 197.3 mm (7.77″) long, 8.4 mm (0.33″) head diameter, 18.9 mm (0.74″) base diameter |
| OUTPUT CONNECTOR | Integral 3-pin XLRM-type |
| OPTIONAL INTERCHANGEABLE ELEMENTS | ESE-O omnidirectional (360°) ESE-C cardioid (120°) ESE-ML MicroLine® (90°) |
| ACCESSORIES FURNISHED | AT8109 two-stage foam windscreen; AT8474 universal isolation mount; AT8473 quick-mount stand adapter; 5/8”-27 to 3/8”-16 threaded adapter |
| AUDIO-TECHNICA CASE STYLE | M26 |
